Offer #1383

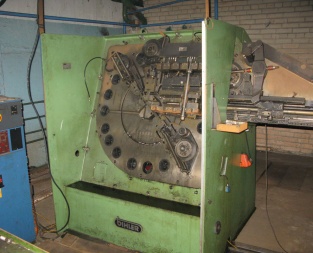

Automatic strip punching and forming machine BIHLER GRM-50
YOM: 1987
Manufacturer: BIHLER
Made in: Germany
Quantity: 2 units
Specification:
Nominal force:
-Presses: 25 tons
-Bending machines: 8 tons
Productivity (number of strokes): 130 mm, 175 mm, 250 mm
Wire diameter:
-Min.: 0,3 mm
-Max.: 5 mm
Feed length:
-Min.: 1 mm
-Max.: 320 mm
-Standart: 320 mm
Max. roll feed: 1000 mm
Cross feed:
-Feed length: 40 mm
-Material width: up to 100 mm
Feed elongation: up to 520 mm
Slide stroke: 130
Max. width of strip: 40 mm
Increase of the width of strip: up to 70 mm
Drive electric motor:
-Power: 4 kW
-Number of revs: 3000 rpm
Machine dimensions: 2550x1650x2160 mm
Machine weight: approx. 3700 kg
