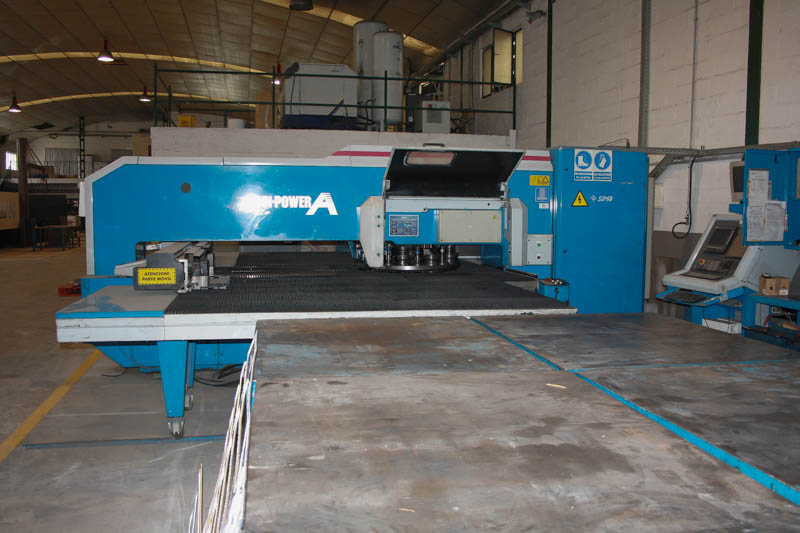

Turret punch press FINN-POWER A5-20 SB

Offer #1070

Turret punch press FINN-POWER A5-20 SB
Control: CNC Siemens Sinumeric 840D
YOM: 2000
Manufacturer: Finn-Power Oy
Made in: Finland

Working hours: 31662

Specification:

Ram force: 230 kN
Punch stroke: hydraulic
Stroke depth adjustment: numerically adjustable
Stroke length adjustment: programmable
Ram speed adjustment: programmable
Number of turret stations: 20 pcs
Tools: Thick Turret
Max. punch diameter: 89 mm
CNC Index Tool:
 -Number of Index Tool stations: std. 2 pcs (max. 10 pcs)
 -Max. punch diameter: 89 mm
 -Max. tool rotation: 58 r/min
Max. material thickness: 8 mm
Max. sheet weight: 200 kg
Clamps: pneumatic 2 pcs (optional 3 pcs)
Max. sheet size (X x Y): 2530 mm x 1270 mm
X-traverse: 2584 mm (X-42...X2542)
Y-traverse: 1317 mm (Y-25...Y1292)
Axis speed (X-axis), max.: 90 m/min
Axis speed (Y-axis), max.: 60 m/min
Traversing speed, max.: 108 m/min
Hit speed, max.:
 -1 mm between holes: 600 1/min
 -25 mm between holes: 320 1/min
 -250 mm between holes: 140 1/min
Punching accuracy according to LKP-7100:
 -Hole location deviation (X/Y axes), max.: 0.1 mm
 -Hole-to-hole distance deviation (X/Y axes), max.: +/- 0.05 mm
 -Angular deviation (CNC Index Tool), max.: +/- 1 degree
Positioning accuracy according to VDI/DGQ 3441:
 -Positional deviation Pa (X/Y axes): 0.08 mm (+/- 0.04 mm)
 -Positional scatter Ps (X/Y axes): 0.04 mm (+/- 0.02 mm)
Turret rotation: 23.8 r/min
Tool change time: 1...3 sec
Work chute (option), max. part size: 200 mm x 200 mm
CNC control:
 -Siemens Sinumeric 840D
Program memory:
 -Siemens: 1.5 MB
Serial interface: RS 232C/V 24
Machine length x width x height (with auxiliary table): 5400x5600x2500 mm
Total weight: 10400 kg
Hydraulic unit drained weight: 750 kg
Oil tank volume: 330 l
Power supply: 40 kVa
Power consumption, average: 20 kW
Machine weight: 13500 kg
