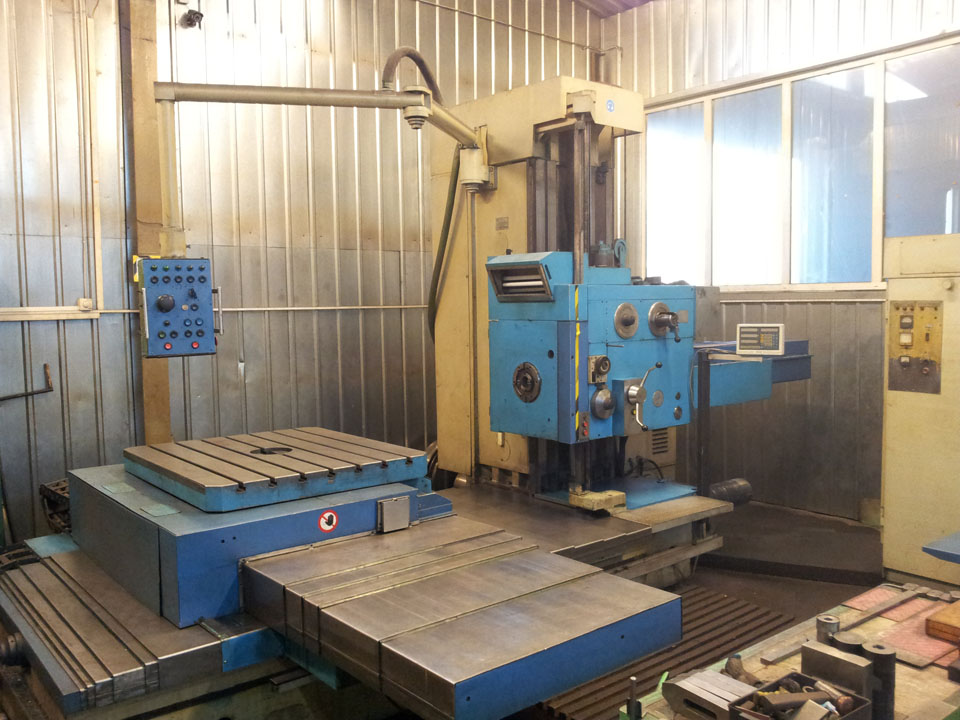

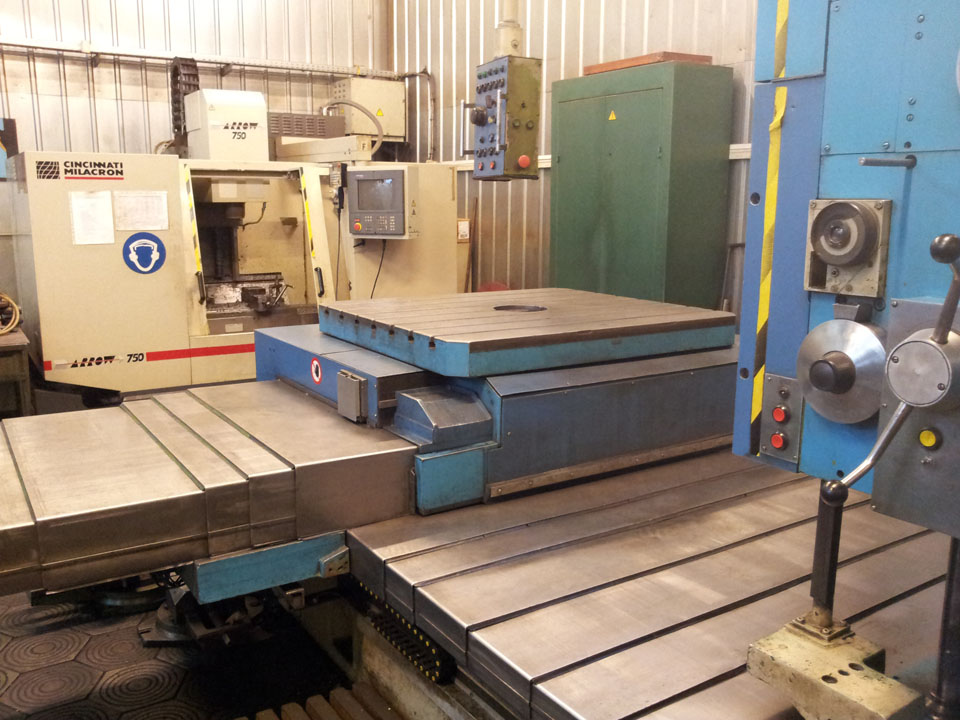

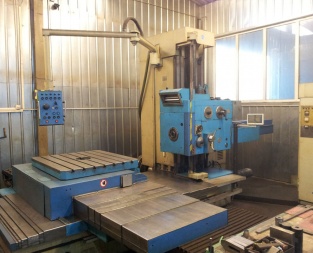

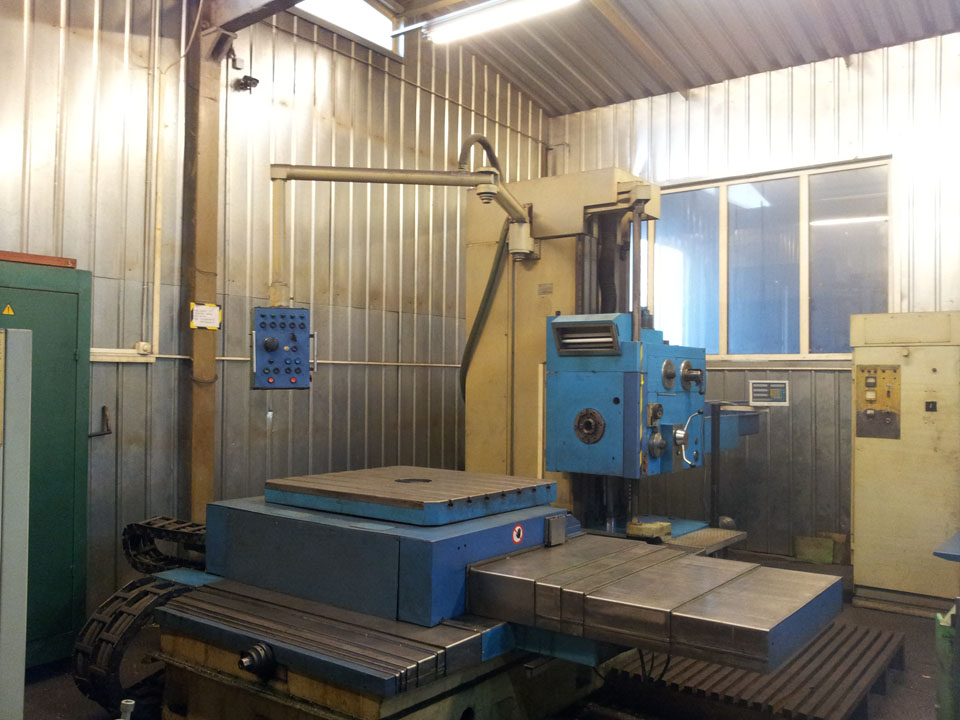

Horizontal boring machine 2A622

Offer #1371

Horizontal boring machine 2A622
Made in: Russia

Specification:

Diameter of the pull-out spindle: 110 mm
Main drive power: 8,5 kW
Spindle rotation speed: 10-1250 rpm
Faceplate rotation speed: 6,3-160 rpm
Max. torque on the pull-out spindle: 3000 Nm
Faceplate diameter: 630 mm
Turntable dimensions: 1250х1120 mm
Number of spindle rotation frequencies: 23
Number of faceplate rotation frequencies: 15
Max. torque on the faceplate: 2500 Nm
Spindle cone: Morse 6
Transversal table travel (X): 1000 mm
Vertical travel (Y) of the spindle headstock: 1000 mm
Longitudinal table travel (Z): 1200 mm
Longitudinal spindle travel (W): 710 mm
Feed force of spindle headstock: 20000 N
Feed force of spindle: 15000 N
Feed force of table: 20000 N
Turntable rotation: 360 degrees
Range of feeds of spindle headstock and table: 1,25-1250 mm/min
Range of feeds of radial support: 0,8-800 mm/min
Table loading capacity: 3000 kg
Working feeds on linear axes: 2-2000 mm/min
Accuracy class according to GOST2110: normal
Overall dimensions:
 -Length: 6790 mm
 -Width: 4880 mm
 -Height: 3100 mm
Total machine weight: 16000 kg

Purpose:

Horizontal boring machine 2A622 is intended for complex machining of housing parts weighing up to 3 tons. Machines are equipped with the pull-out spindle (110 mm diameter) without the built-in faceplate and have increased rigidity of the spindle system.
