Offer #754

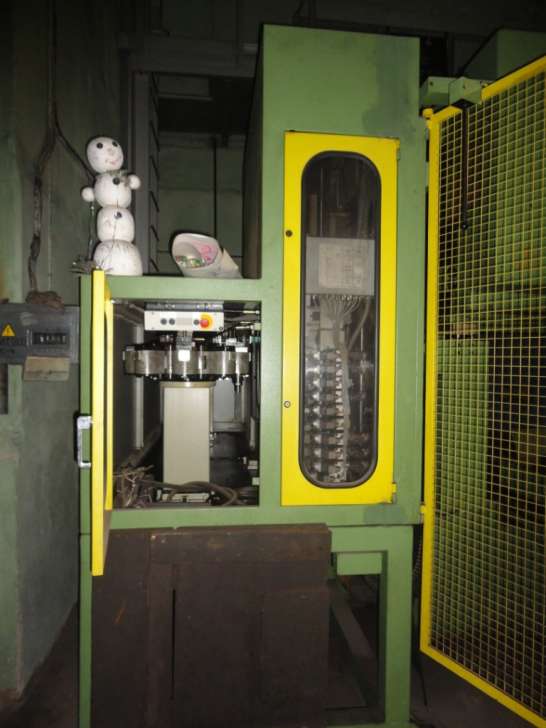

Jig boring machine SIP 740
YOM: 1988
Manufacturer: SIP
Made in: Switzerland
Specification:
Table length: 1600 mm
Table width: 1240 mm
Table height: 985 mm
Table max load: 2500 kg
Table stroke (X-axis): 1500 mm
Head stroke (Y-axis): 1000 mm
Hollow shaft stroke (Z-axis): 300 mm
Distance between columns: 1600 mm
Max distance between spindle and table: 1265 mm
Portable traverse stroke (W-axis): 900 mm
Spindle speeds:
-From 30 rpm
-Up to 2500 rpm
Speed ranges: 30-280/280-830/830-2500
Spindle motor: 6.5 kW
Spindle taper: ISO 45
Rapid travel speed (X-Y-Z): 6 m/min
Working feed:
-From 0.1 mm/min
-Up to 6000 mm/min
Voltage: 50 Hz, 380 V
Feed motors' power: 1.5 kW
Machine weight: 14000 kg
Machine weight with accessories: 15000 kg
Overall machine dimensions:
-Length: 5500 mm
-Width: 4600 mm
-Height: 3900 mm
