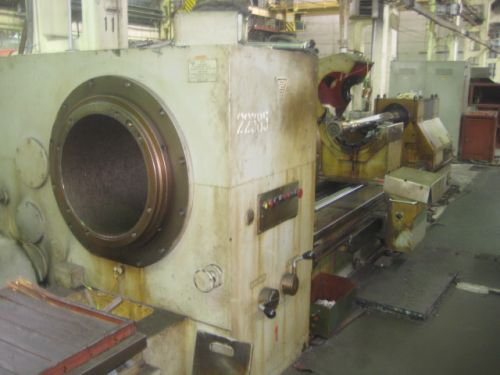

Deep hole drilling machine mod. RT403 08F1

  • More pictures
  • Videos
  • Print

Offer #544

Deep hole drilling machine mod. RT403 08F1
Made in: 1987
Country of origin: Russia
Manufacturer: Ryazan

Specification:

Height from the guides: 500 mm
Diameter of the work piece:
 -Max: 500 mm
 -Min: 125 mm
Lenght of the work piece:
 -Max: 8000 mm
 -Min: 3000 mm
Diameter of boring opening: 8-400 mm
Working feed: 5-3000 mm/min
Number of lunettes: 1
Diameter of spindle hole: 505 mm
Dimension: 23835x5350x2350 mm
Weight: 38000 kg
