Gear shaper 5M161

Offer #824

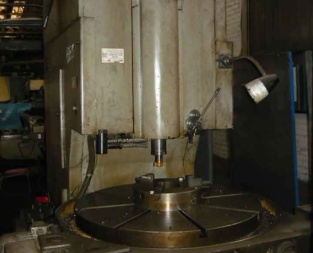

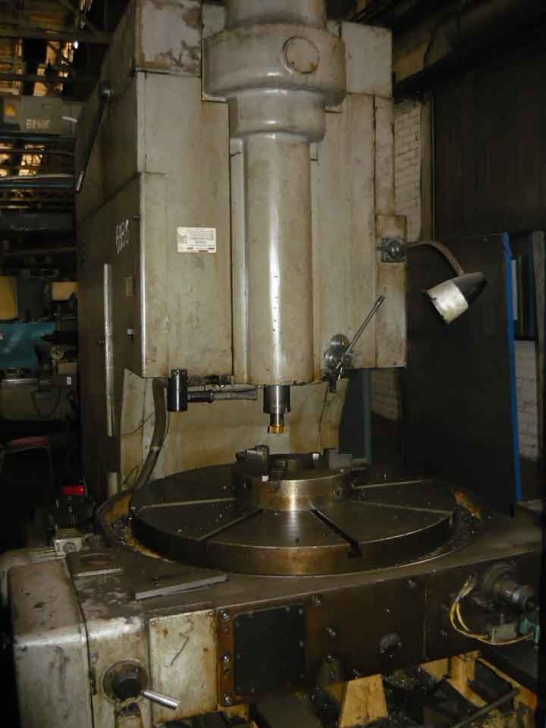

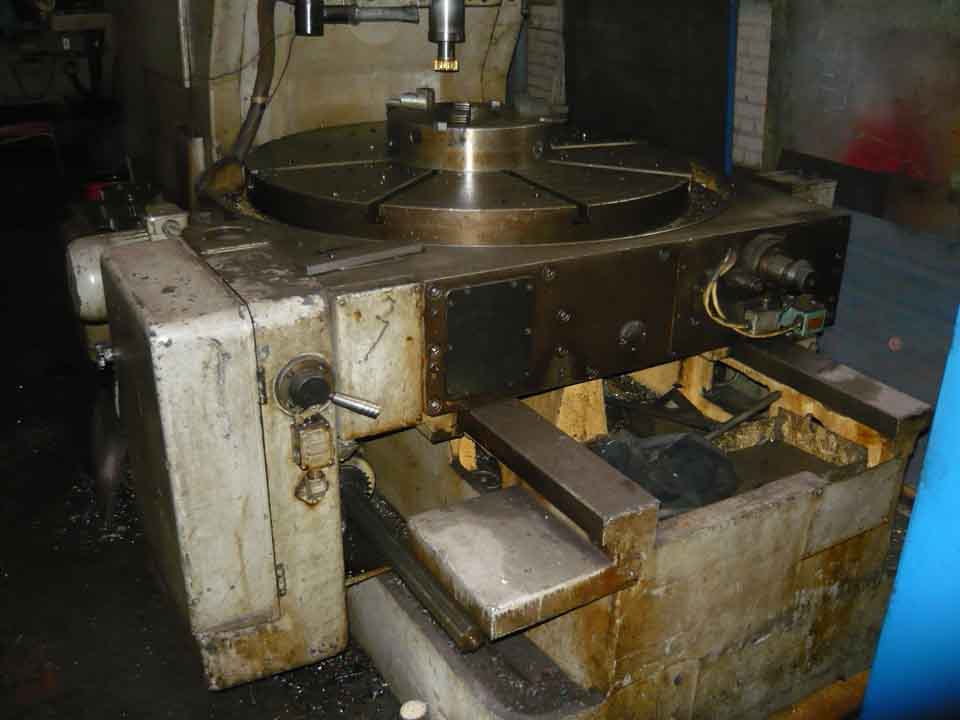

Gear shaper 5M161
YOM: 1984
Manufacturer: GLAVTOCHSTANKOPROM
Made in: Russia

Machine is dedicated for teeth processing on cylindrical wheels of internal and external gearing
in conditions of an individual and a batch production.

Specification:

Gear teeth type: external and internal straight teeth
Min diameter of wheels: 160 mm
Max diameter of wheels: 1250 mm
Max module: 12 mm
Distance from cutter axis to the table axis: 60-630 mm
Max toothing width: 160 mm
Number of teeth: 12-200
Distance from slider’s face to the surface: 150-550 mm
Dimensions: 3100x1800x3500 mm
Weight: 10450 kg
