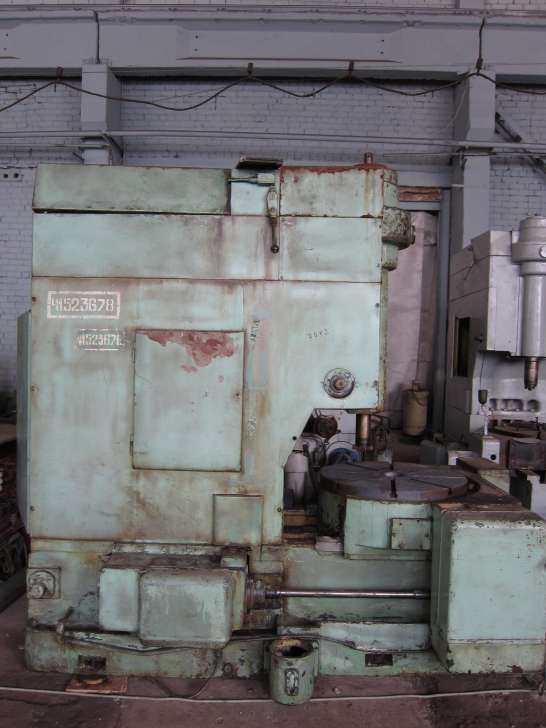

Gear shaper STANKO 5B150P

Offer #699

Gear shaper STANKO 5B150P
YOM: 1980
Country of origin: Russia
Manufacturer: STANKO

Specification:

Max diameter of gears cut: 800 mm
Max module: 12 mm
Max cutter stroke: 200 mm
Max cutter diameter: 200 mm
Saddle indexing gear diameter: 360 mm
Cutter arbor diameter: 44.443 mm
Spindle bore taper: No. 5 Morse
Axis-to-axis distance between cutter and table:
 -Min: 0 mm
 -Max: 700 mm
Faceplate diameter: 800 mm
Distance from floor to faceplate: 870 mm
Indexing gear diameter: 762 mm
Table hole diameter: 120A mm
Range of cutter double strokes per min: 33-188 mm
Range of table feed rates per cutter double stroke:
 -Circular: 0.2-1.5 mm
 -Radial: 1-5.4 mm
Table rapid rotation speed: 1.7 rpm
Table rapid travel speed: 137 mm/min
Cutter rapid rotation speed: 3 rpm
Main electric motor power: 4.8; 5.7; 7.5 kW
Dimension: 3100x1800x3500 mm
Weight: 10200 kg
