Offer #409

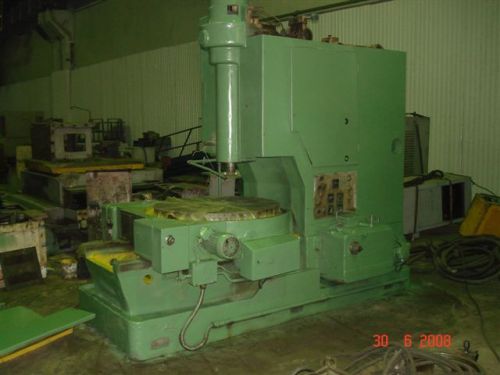

Gear shaper STANKO 5B161
YOM: 1980
Country of origin: Russia
Manufacturer: Stanko

Machine is for processing teeth on cylindrical wheels of internal and external gearing in conditions individual and a batch production.

Specification:

Gear teeth type: external and internal straight teeth
Min diameter of wheels: 160 mm
Max diameter of wheels: 1250 mm
Max module: 12 mm
Distance from cutter axis to the table axis: 60-630 mm
Max toothing width: 160 mm
Number of teeth: 12-200
Distance from slider’s face to the surface: 150-550 mm
Dimension: 3100x1800x3500 mm
Weight: 10450 kg
