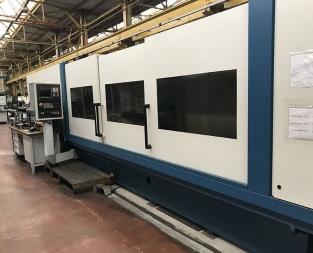

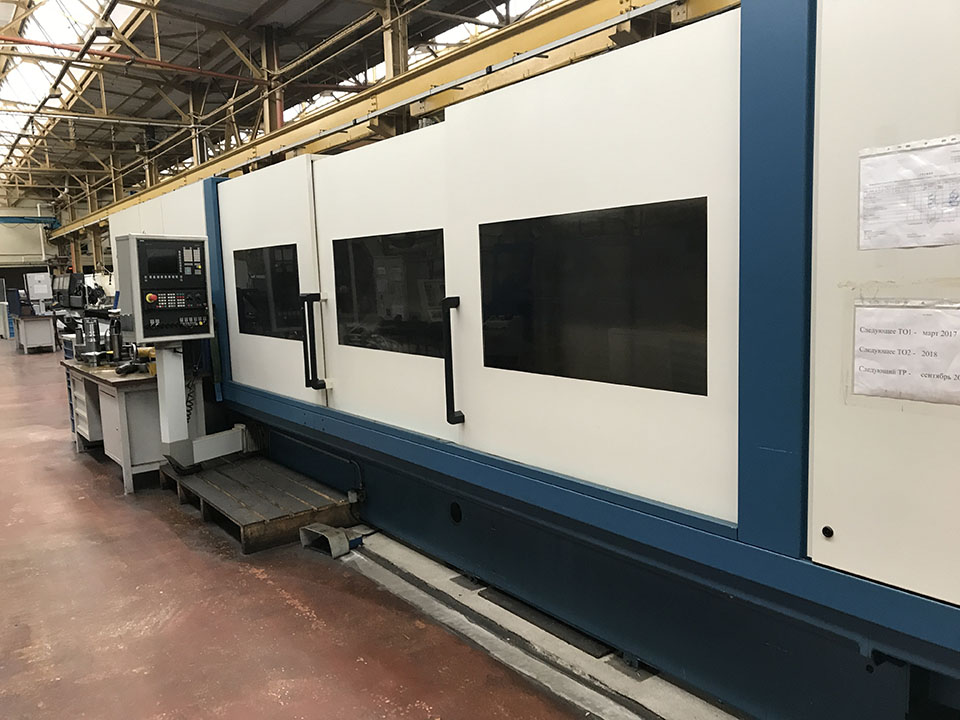

CNC Cylindrical grinder SCHAUDT MIKROSA BWF PF61

Offer #1845

CNC Cylindrical grinder SCHAUDT MIKROSA BWF PF61
YOM: 2000
Manufacturer: SCHAUDT MIKROSA BWF GmbH

Specification:

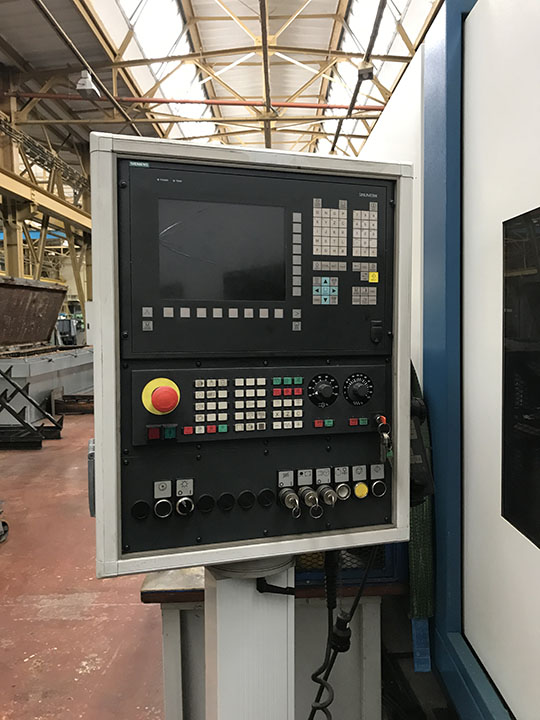

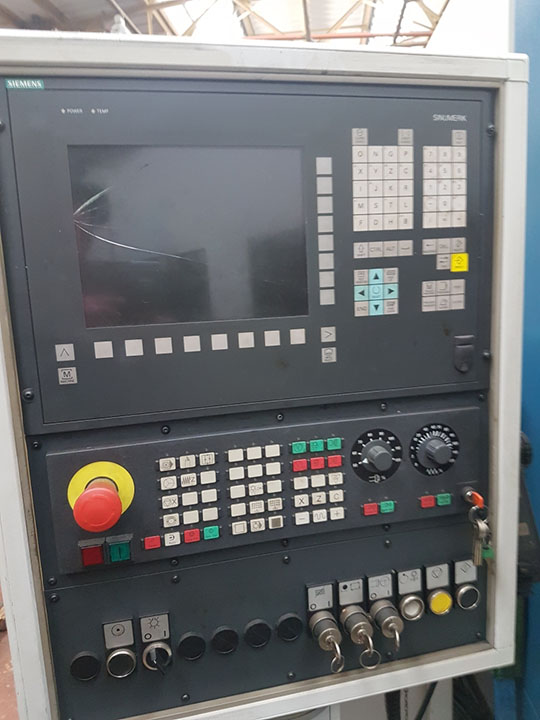

CNC Control: Siemens Sinumerik
Distance between centres: 3000 mm
Height of centers: 260 mm
Max. grinding diameter: 520 mm
Max. work-piece weight: 500 kg
Z-axis:
 -Max. travel speed: 15000 mm/min
 -Travel distance: 1900 mm
Headstock:
 -Spindle rotation frequency: 1-1000 rpm
 -Rotating center: K6 Morze cone
Tailstock:
 -Stroke of quill: 100 mm
 -Rotating center: K5 Morze cone
Grinding headstock (moving on X-axis):
 -Max. travel speed: 15000 mm/min
 -Travel distance: 430 mm
Grinding wheel:
 -Left: 600 mm
 -Right: 500 mm
Opening diameter: 304,8 mm (left), 203,2 mm (right)
Max. width of grinding wheel:
 -Left: 125 mm
 -Right: 100 mm
Rotation speed of grinding wheel: 45000 mm/sec
Max. drive power: 15 kW
Electric cabinet weight: 800 kg
Machine weight: 13000 kg
