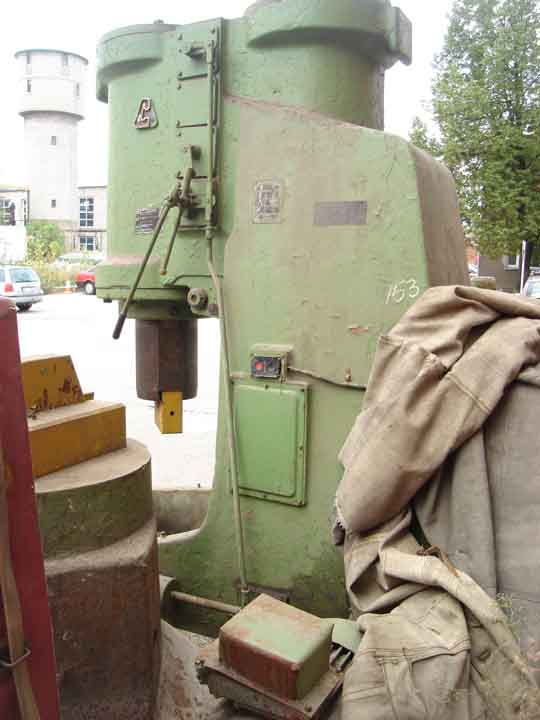

Pneumatic air forging hammer model MA4136

  • More pictures
  • Videos
  • Print

Offer #840

Pneumatic air forging hammer model MA4136
Made in: Russia
Manufacturer: Kalinin industrial association for the production of press-forging equipment

Specification:

Weight of the falling parts: 400 kg
Strike energy: 11 kJ
Strike frequency per min: 142
Flight: 30 mm
Height of the working area: 530 mm
Dimensions of the working surface:
 -Length: 560 mm
 -Width: 100 mm
Optimal dimensions of the forging detail: 100 mm
Power: 37 kW
Overall dimensions mm:
 -Length: 3200 mm
 -Width: 1320 mm
 -Height: 2700 mm
Height over the floor level: 2600 mm
Weight: 13 ton
