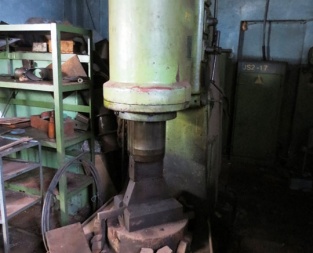

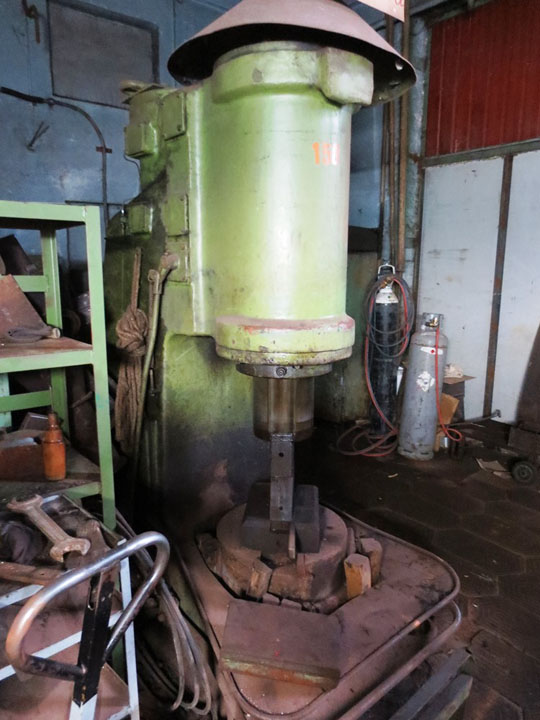

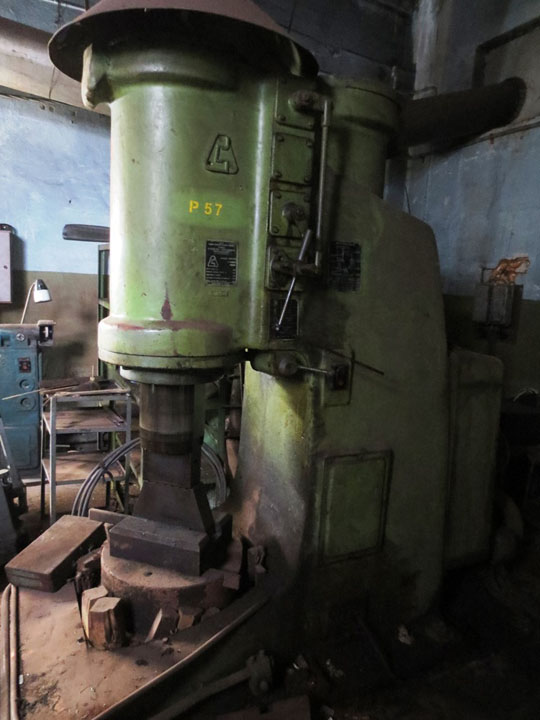

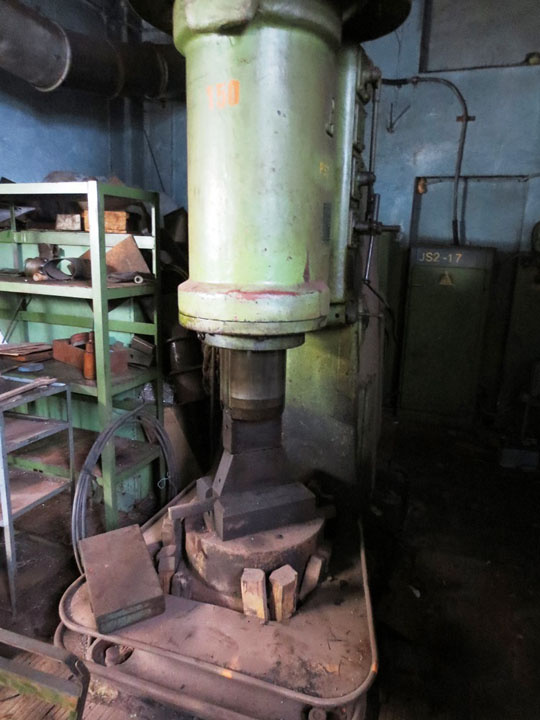

Pneumatic air forging hammer model MV4134

Offer #1238

Pneumatic air forging hammer model MV4134
YOM: 2009
Manufacturer: KALININ Factory
Made in: Russia

Hammer is in working condition.

Specification:

Weight of the falling parts: 250 kg
Number of strokes per min: 155
Effective kinetic energy of falling part by stroke: 645 kg/m
Distance from ram axis-to-frame: 420 mm
Anvil dimensions:
 -Length: 210 mm
 -Width: 80 mm
 -Anvil height above the floor: 750 mm
Diameter of working cylinder: 400 mm
Diameter of compressor cylinder: 400 mm
Stroke run: 560 mm
Optimal stamping section of work-piece:
 -Square: 90 mm
 -Rounded 105 mm
Overall dimensions:
 -Length: 1200 mm
 -Width: 2710 mm
 -Height: 2450 mm
Weight of the hammer with an anvil-block: 7900 kg
