Railway lathe KZH-1836

Offer #919

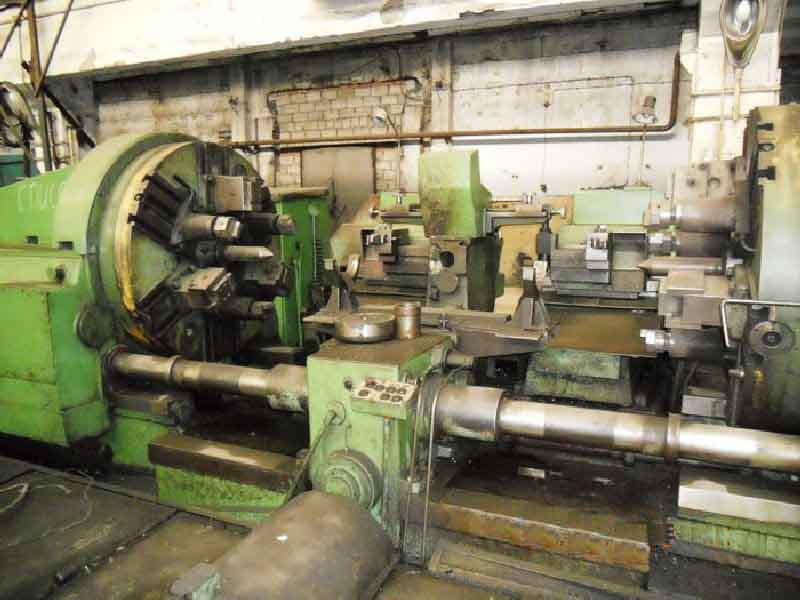

Railway lathe KZH-1836
YOM: 1982
Manufacturer: Kramatorsk
Made in: Russia

Specification:

Feeds:
 -Longitudinal: 6-80 mm/min
 -Transversal: 6-80 mm/min
Number of supports: 2
Rapid travel of supports (±15% tolerance): 1500 mm/min
Max. torque: 35 kN
Diameter of processable wheelset:
 -Min.: 720 mm
 -Max.: 950 mm
Length of the wheelset axis:
 -Min.: 2020 mm
 -Max.: 2600 mm
Railway width: 1520 mm
Height of the centers: 750 mm
Faceplate diameter: 1380 mm
Number of speeds: 33
Overall machine dimensions:
 -Length: 7300 mm
 -Width: 5200 mm
 -Height: 2400 mm
Main motor power: 71 kW
Rev number of main drive's electric motor: 1500-2500 rpm
Machine weight: 42000 kg
