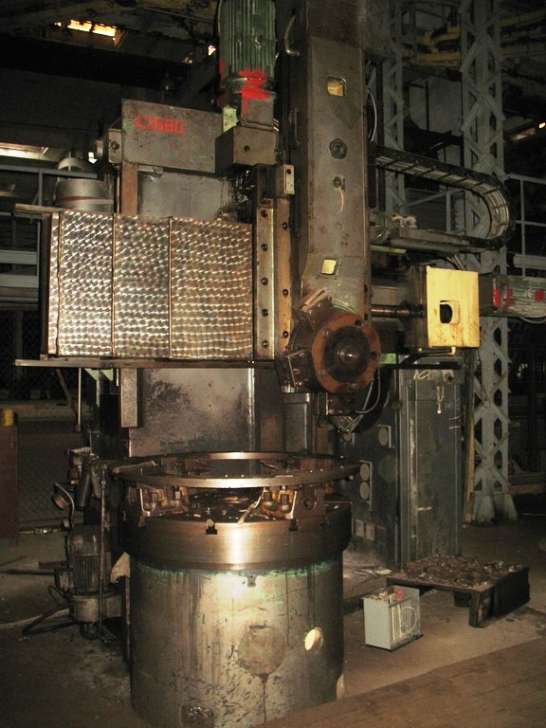

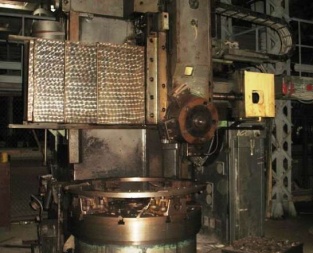

Vertical turning lathe SEDIN 1Е512PF2I

Offer #757

Vertical turning lathe SEDIN 1Е512PF2I
YOM: 1989
Manufacturer: Sedin Machine Factory
Made in: USSR

Specification:

Max work-piece diameter: 1250 mm
Max work-piece height: 1000 mm

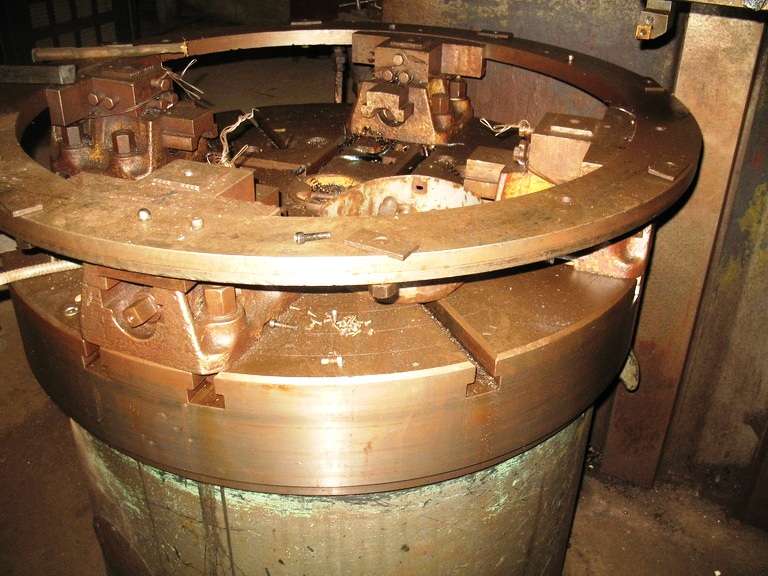

Faceplate diameter: 1120 mm
Centering hole diameter: 150Н7
Width of T-form slots in a faceplate: 28Н12
Number of upper supports with revolving head: 1
Max height of a cutting tool: 40 mm

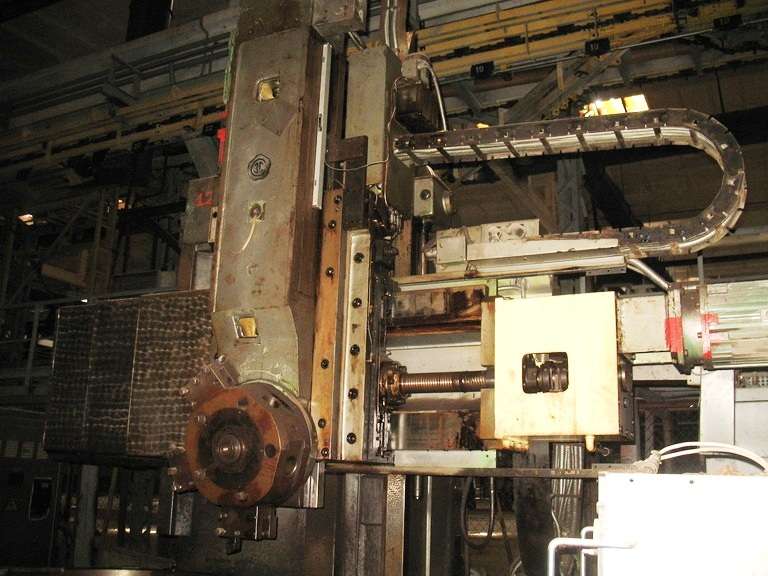

Max movement of upper support:
  -Horizontal: 810 mm
  -Vertical: 700 mm
Hole diameter for a tool in the revolving head: 70Н7
Max movement of a cross-beam:: 660 mm
Movement speed of a cross-beam: 0,45 m/min
Range number of faceplate frequency rotation: stepless adjustment on every reducer level
Limits of faceplate frequency rotation:
  -I level: 0,4...80 rpm
  -II level: 1,6...315 rpm
Max cutting effort by upper support: 32 kN
Max total cutting effort by simultaneous work with upper and side supports: 32 kN
Max torque at the faceplate: 16000 Nm
Adjustment of support (slide) feeds: stepless
Limits of horizontal and vertical support feeds    and it's slide: 0,001...99,99 mm/r
Speed of adjusting support movements and it's slide: 6*, 60* 600*, 6000 mm/min
Step limits of cuttable threads: 1...99,99
Overall machine dimensions:
  -Length: 4050 mm
  -Width: 4590 mm
  -Height: 5400 mm
Machine weight:
  -With electric equiment: 17000 kg
  -W/o electric equipment: 15500 kg
