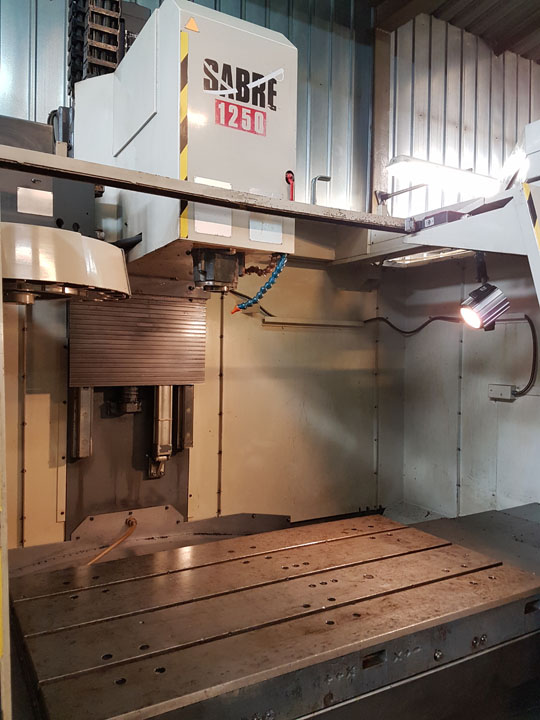

CNC Vertical machining center CINCINNATI MILACRON SABRE 1250

Offer #1755

CNC Vertical machining center CINCINNATI MILACRON SABRE 1250
YOM: 1996
Manufacturer: Cincinnati Milacron LTD
Made in: England

Specification:

CNC System
Model and type: NCT 200 TOUCH

Axis travel ranges, X-Y-Z
Longitudinal (table, X-axis): 1270 mm
Cross (saddle, Y-axis): 762 mm
Vertical (spindle carrier, Z-axis): 820 mm
Range, spindle gauge line to work surface:
 -Min.: 150 mm
 -Z-axis max.: 970 mm

Table, X-axis
Work surface dimensions:
 -Length: 1370 mm
 -Width: 765 mm
Load capacity: 910 kg

Spindle carrier, Z-axis
AC drive motor (continuous rated): 9 kW
Spindle speed range (standard): 60-8000 rpm
Number of speeds: 1 rpm increments

Linear axis feedrates and thrust
Feedrates (X, Y and Z): 15000 mm/min
Rapid traverse rate: 24000 mm/min (X, Y), 18000 mm/min (Z)
Axis thrust (duty rated):
 -X: 3 kN
 -Y: 3 kN
 -Z: 7 kN

Accuracies
Uni-directional positioning per linear axis over full travel: ±0,004 mm
Uni-directional repeatability per linear axis over full travel: ±0,001 mm

Automatic storage/changer unit
Storage capacity, number of tools: 21
Max. tool and holder weight: 6,8 kg
Max. tool drum load: 68 kg
Max. tool length: 385 mm
Tool diameter (adjacent pockets full): 80 mm
Tool diameter (adjacent pockets empty): 160 mm
Automatic tool change time (metal to metal): 7,5 sec
