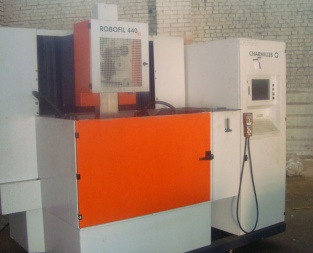

CNC Wire cutting EDM machine CHARMILLES ROBOFIL 440 SL

Offer #1763

CNC Wire cutting EDM machine CHARMILLES ROBOFIL 440 SL
YOM: 2006
Manufacturer: CHARMILLES
Made in: Switzerland

Specification:

Working area
Max. work-piece dimensions: 1200x700x400 mm
Front door size: 1020 mm
Max. work-piece weight: 1500 kg
Table size: 900x600 mm
Distance between floor and table: 900 mm
Full capacity of dielectric: 1200 l

X, Y, Z, UV axles
Max. travel on coordinates X, Y, Z: 550x350x400 mm
Max. travel on coordinates U, V: 550x350 mm
Protection from collision: Standard - on 5 axles

Conical processing
Max. conicity angle: +-30/400 deg/mm

Power supply
Voltage: 380/400 V
Total power required: 110 kVA

Machine
Overall dimensions of all equipment: 2600x2810x2080 mm
Total equipment weight (without dielectric): 3300 kg
