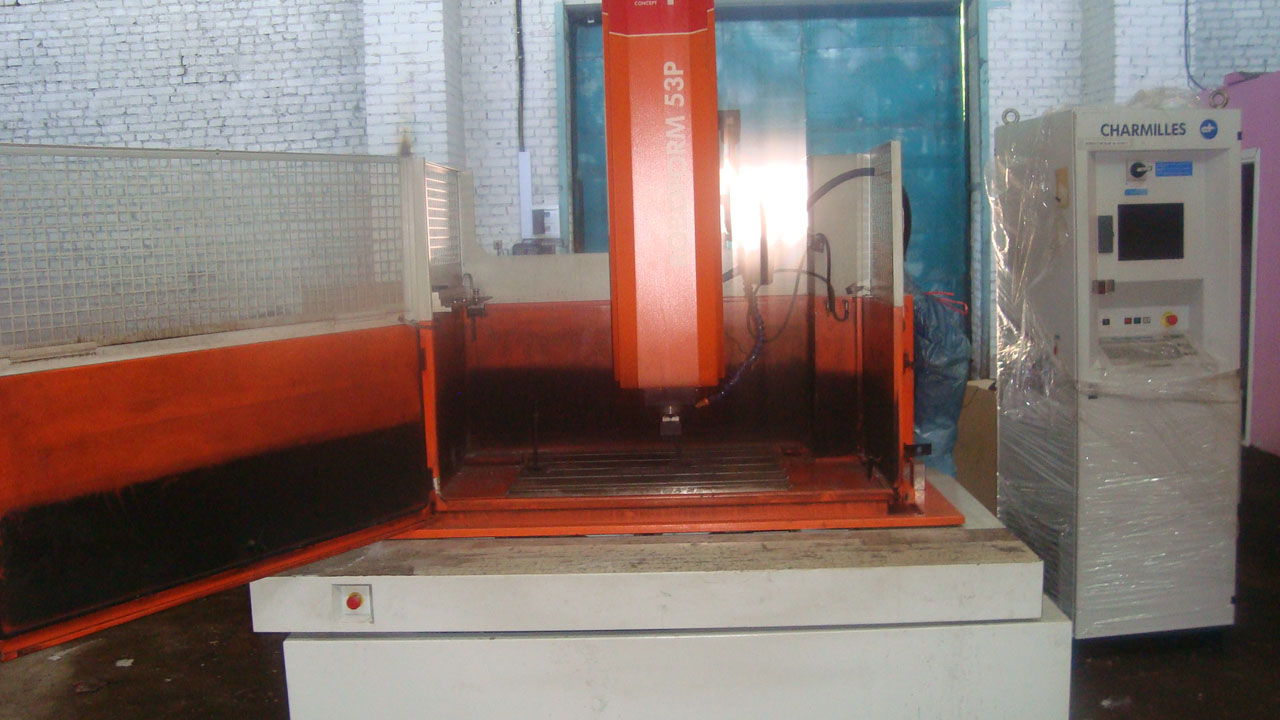

Die sinking EDM machine CHARMILLES ROBOFORM 53P

Offer #1762

Die sinking EDM machine CHARMILLES ROBOFORM 53P
YOM: 2005
Manufacturer: CHARMILLES
Made in: Switzerland

Specification:

Machine dimensions: 1950x2500x2700 mm
Machine weight: 3000 kg
Table size: 800x600 mm
Max. work-piece weight: 1000 kg
Number of T-slots: 5
T-slot size: 12 mm
Travels:
 -X: 600 mm
 -Y: 400 mm
 -Z: 400 mm
Dielectric dimensions: 1200x800x500 mm
Dielectric capacity: 450 l
Voltage: 50 Hz (60 Hz optional), 380/400 V
