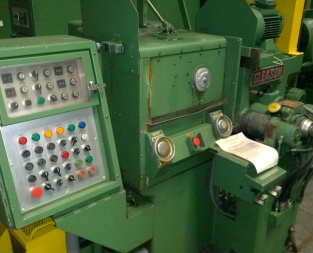

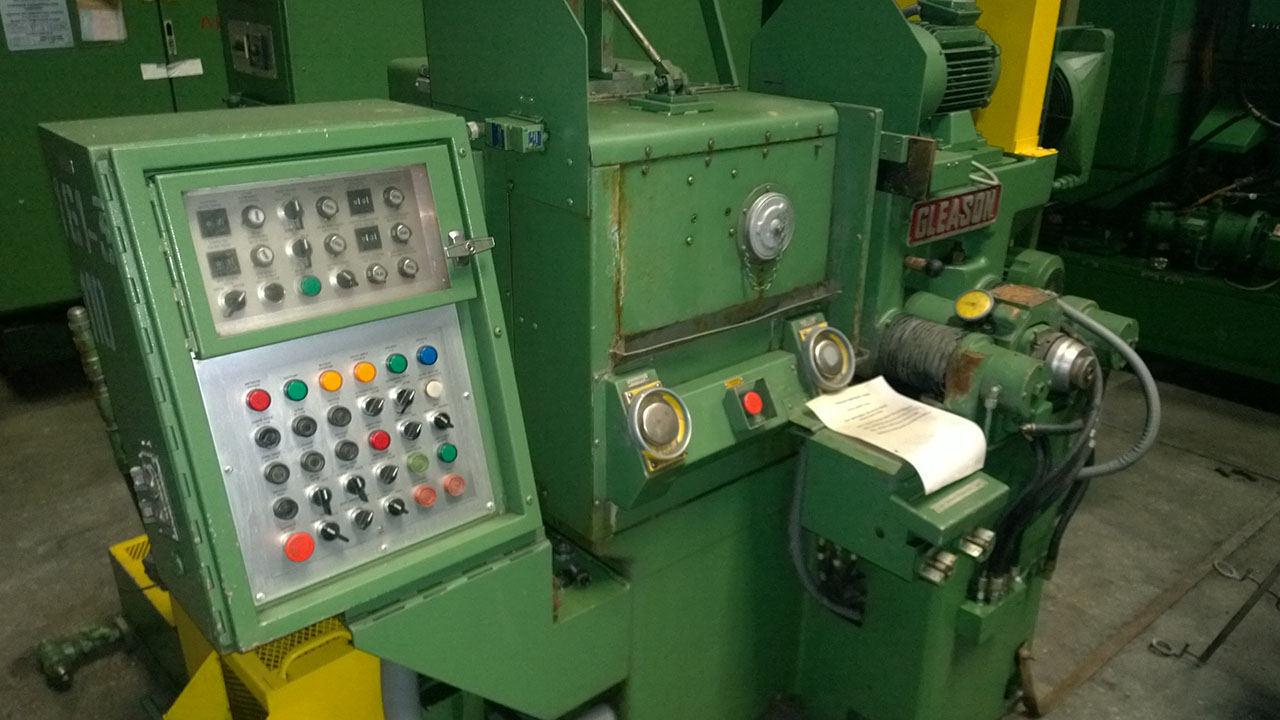

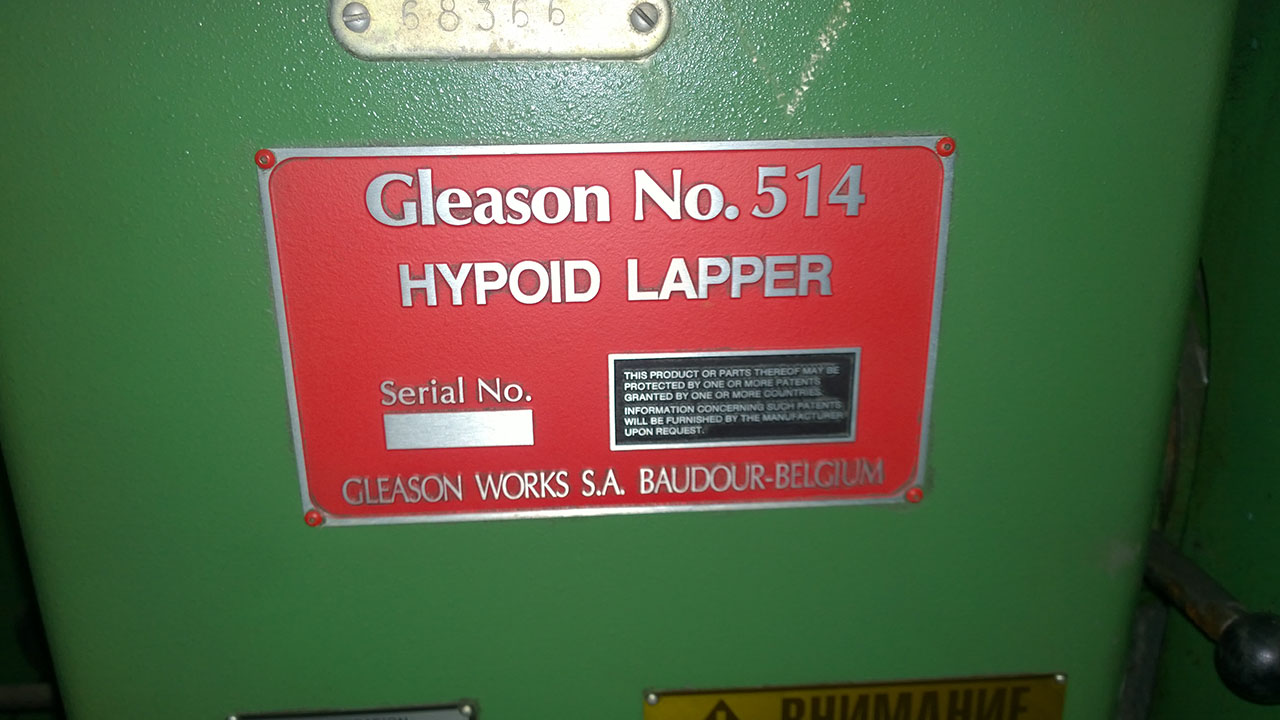

Hypoid lapper Gleason No. 514

Offer #1805

Hypoid lapper Gleason No. 514
Quantity: 3 units

Specification:

Max. gear diameter: 266 mm
Max. gearwheel diameter: 152 mm
Min. distance between gearwheel spindle axis and gear spindle end: 114 mm
Max. distance between gearwheel spindle axis and gear spindle end: 178 mm
Min. distance between gear spindle axis and gearwheel spindle end: 152 mm
Max. distance between gear spindle axis and gearwheel spindle end: 228 mm
Max. gear spindle offset up or down over gearwheel spindle axis: 95 mm
Gearwheel spindle:
 -Diameter of taper opening: 100 mm
 -Conicity for 1 feet: 15 mm
 -Cone depth: 76 mm
 -Diameter of opening in spindle: 63 mm
Gear spindle:
 -Diameter of taper opening: 58 mm
 -Conicity for 1 feet: 13 mm
 -Cone depth: 76 mm
 -Diameter of opening in spindle: 55 mm
Main electric motor: 5 HP 1500 rpm (50 Hz)
