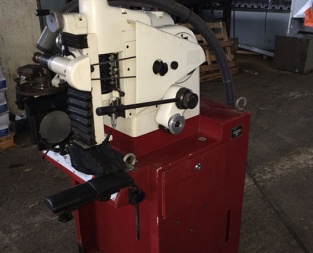

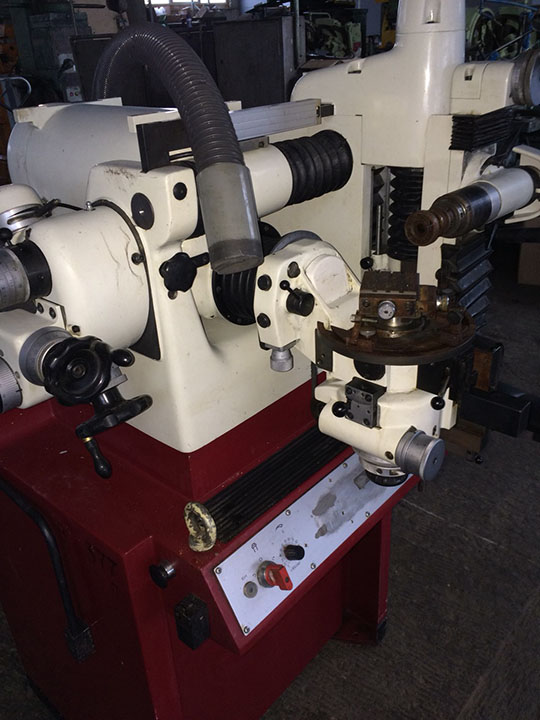

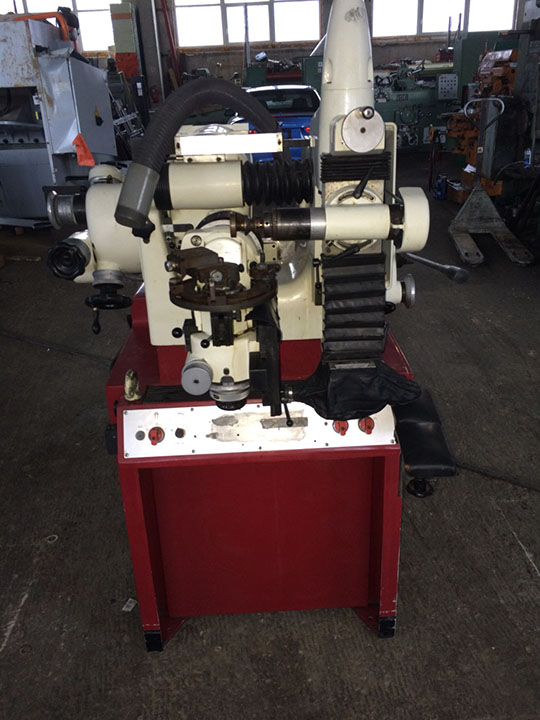

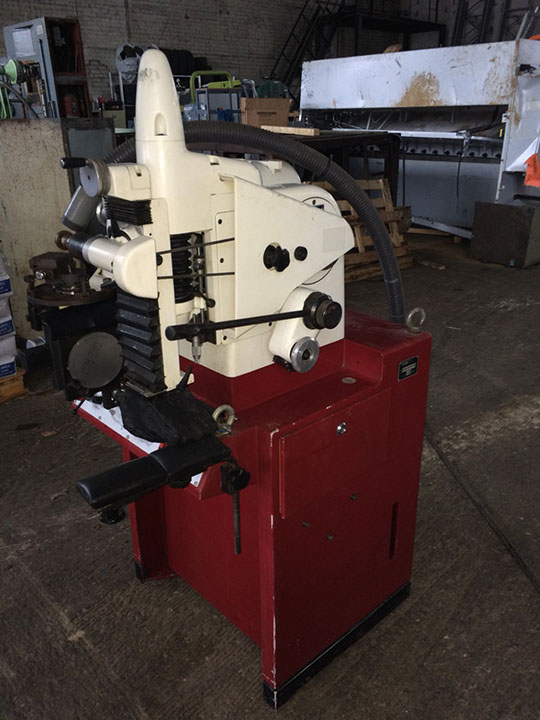

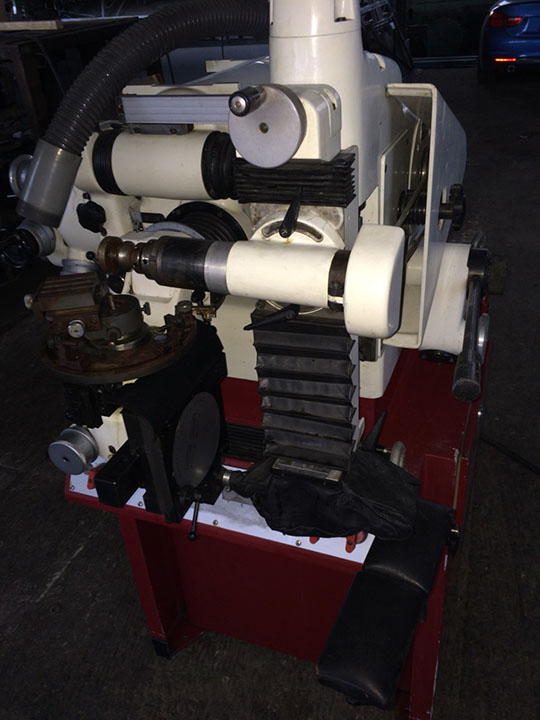

Tool sharpener EWAG WS 11-SP

Offer #1830

Tool sharpener EWAG WS 11-SP
YOM: 1997
Manufacturer: EWAG AG
Made in: Switzerland

Specification:

X-axis:
 -Cross feed: 100 mm
 -Reading accuracy: 0,01 mm
Y-axis:
 -Vertical stroke, straight: 100 mm
Y2-axis:
 -Reading accuracy: 0,01 mm
Z-axis:
 -Infeed horizontal: 100 mm
 -Reading accuracy: 0,001 mm
Grinding motor:
 -Spindle power: 0,4 hp
 -Spindle speeds: 2500/3500/4800/6800
Workhead motor:
 -Spindle motor: 0,4 hp
 -Spindle speed: 100..1300 rpm
Max. wheel diameter: 75 mm
Dimensions of the machinery: 1200x1000x1500 mm
Machinery weight with accessories box: 600 kg
