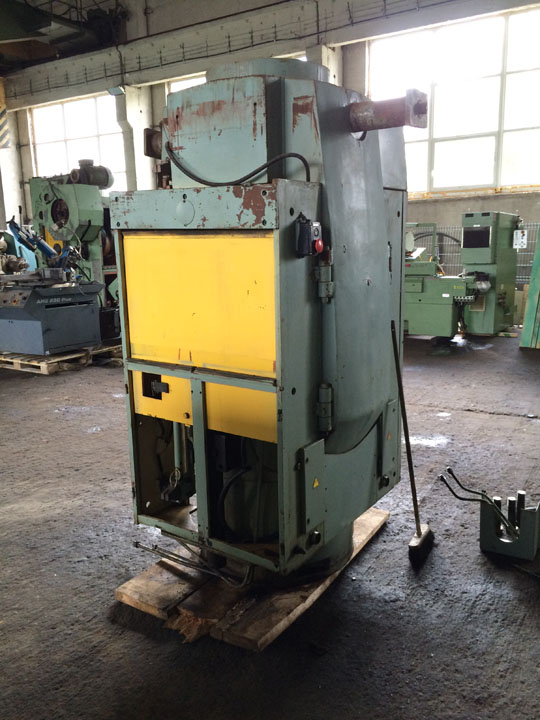

Hydraulic press for cold extrusion of relief cavity model P7640

Offer #1583

Hydraulic press for cold extrusion of relief cavity model P7640
YOM: 1986
Manufacturer: Pressmash
Made in: Russia

Specification:

Nominal force: 1000 tons
Course of slide-block: 320 mm
Speed of slide-block: 8,5 mm/sec
Distance between table and slide-block: 340 mm
Distance between columns: 545 mm
Table dimensions: 485x680 mm
Main motor power: 7,5 kW
Overall dimensions:
 -Length: 4000 mm
 -Width: 1175 mm
 -Height: 2240 mm
Weight: 7890 kg

Description:

Intended for cold extrusion of relief cavity within form building components of technological rig: dies, press-forms, matrixes. Cavity extrusion is being made by installation of hard-tempered master-poisson into non-hardened metallic procurement. Qualitative imprint, depending on the relief complexity, can be obtained by the opened or closed extrusion method. Extrusion depth can be controlled by the device with the price segmentation of 0,01 mm or by the 4th category electrocontact manometer.
