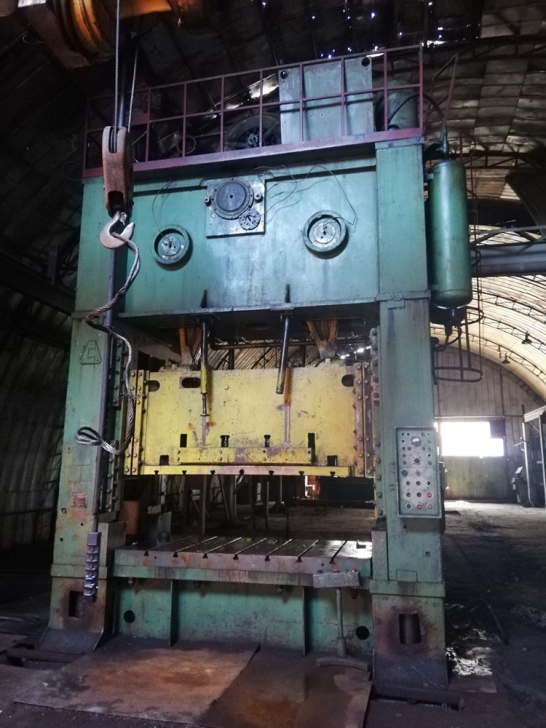

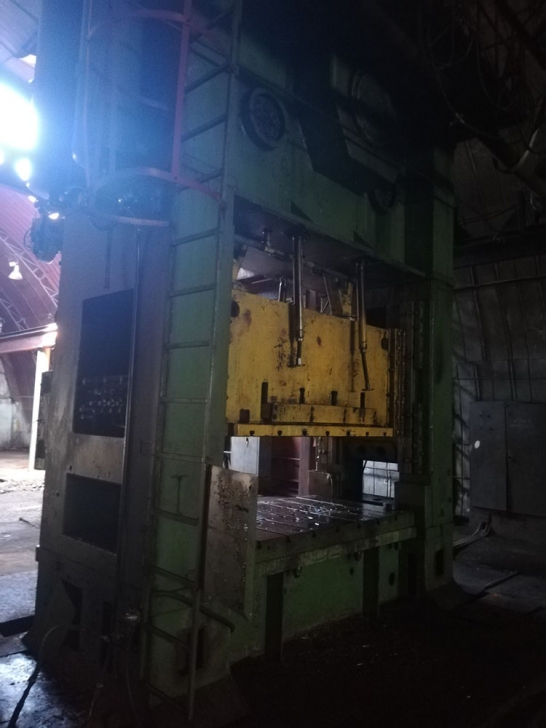

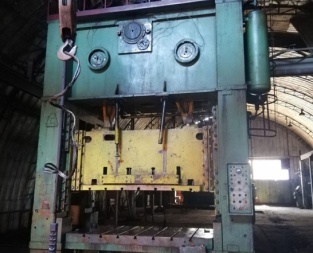

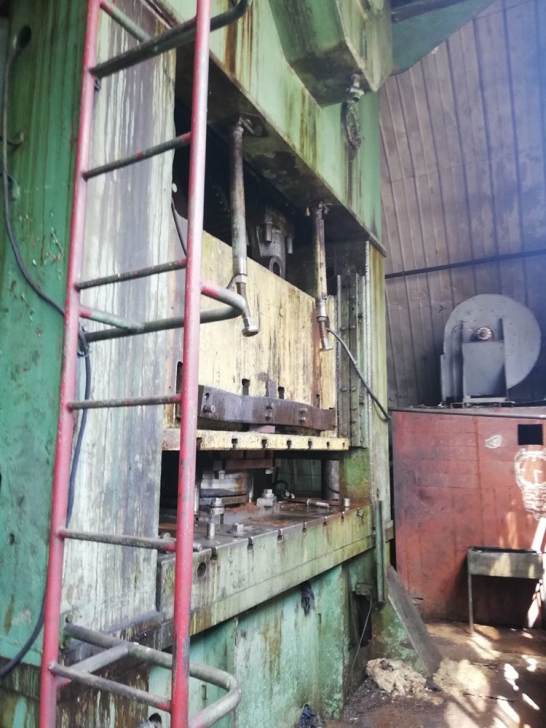

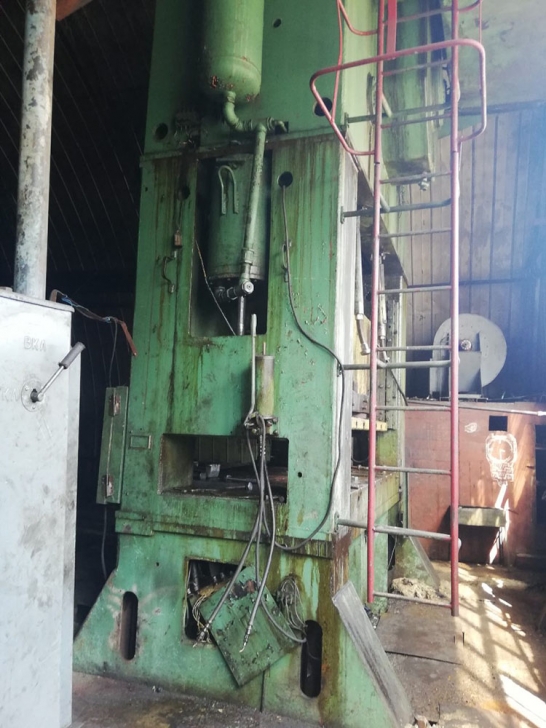

Double-crank single-action closed press K3535A

Offer #1960

Double-crank single-action closed press K3535A
YOM: 1983
Manufacturer: Kalinin plant of forging and pressing equipment
Made in: Russia

Specification:

Nominal press effort: 3150 kN
Slide stroke: 400 mm
Number of slide strokes per minute: 25
Distance adjustment between table and slide: 250 mm
Distance between table and slide in its lower position at upper position of adjustment: 750 mm
Table dimensions: 2500 x 1250 mm
Main motor power: 47 kW
Press dimensions:
 -Length: 4555 mm
 -Width: 2900 mm
 -Height: 5855 mm
Press weight: 50900 kg
