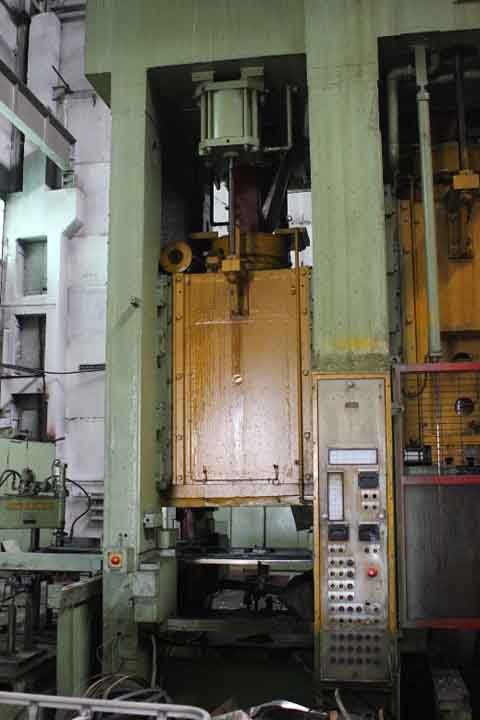

Transfer press SCHULER Т4-3000-9-550

Offer #767

Transfer press SCHULER Т4-3000-9-550
Manufacturer: Schuler Pressen
Made in: Germany

- The multiposition press with the eccentric drive of cold pressing serves for production of
details of mass production in working steps (stamp places): 2 exhaust and 1 cut ram
- The main drive is carried out by means of the engine of a direct current of parallel
excitement. Through a belt pulley and a flat belt the engine sets a press flywheel in
motion
- By means of the two-disk coupling mounted in a flywheel the torque of a flywheel is
transferred to a power shaft, from here through gear search and an intermediate shaft
eccentric wheels are set in motion. Through a rod eccentric wheels set rams in motion
- Located separately two-disk brake stops a power shaft and rams
- The number of turns of the main engine and by that a course of the ram gives in to
Adjustment

Specification:

Pressing effort in the bottom dead point of 12,5 mm: 3000 ton
Kinetic energy at number of turns falling by 20% within 15 min: 50 000 kgm
The most permissible general load of steps 2-9 between racks: 1,350 ton
The most admissible effort of cutting in a step 1 between racks: 300 ton
The most admissible effort of pressing in any other position: 750 ton
Number of positions: 9
Intercenter distance of the tool: 550 mm
Ram course on both rams of an exhaust stamp (ram 2 and 3): 400 mm
Ram course on rams of a cut stamp (ram 1): 150 mm
The greatest depth of an extract: 150 mm
Number of courses down in a minute when using the stepless drive: 15-24
The greatest width of a tape / the smallest width of a tape: 630 mm / 150 mm
The greatest diameter of preparations (single-row/two-row): 500 mm / 330 mm
Distance between clamshell tires closed and readjusted in a position: 550+700+850 mm
The greatest admissible thickness of a metal leaf: 3 mm
Power consumption: 250 kW
Gross weight of the machine: 650 ton
