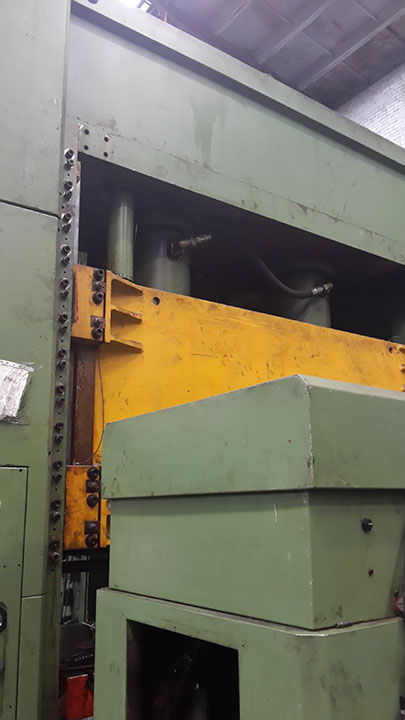

Transfer press WANZKE HPV 250F

  • More pictures
  • Videos
  • Print

Offer #1832

Transfer press WANZKE HPV 250F
YOM: 1994
Manufacturer: WANZKE GMBH
Made in: Germany
Capacity: 2500 kN
Stroke: 500 mm
Daylight: 985 mm
Assembly height: 1000 mm
Table size: 2600x1040 mm
Slide size: 2600x1040 mm
Number of T-slots: 22
Side passage of the column: 800 mm
Bolster above floor: 900 mm
Bore in ram: 50 mm
Side opening: 500 mm
Draw cushion force: 5x4000 kN
Draw cushion expansion: 150 mm
Motor rating of the pump motor: 75 kW
Tank volume: 1200 l
V rapid down: max. 400 mm/s
V rapid up: max. 400 mm/s
V working: max. 100 mm/s
Max. sheet width: 500 mm
Number of levelling rollers: 9
Diameter of levelling roller: 50 mm
Programmable feed length: 0,1-9999,9 mm
 -Width: 5900 mm
 -Depth: 2700 mm
 -Height: 4400 mm
Weight: 40000 kg
