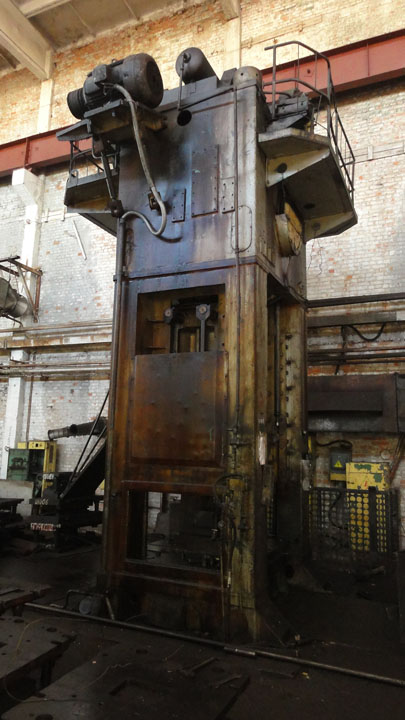

Single-crank single-action closed press VORONEZH K9540

Offer #1761

Single-crank single-action closed press VORONEZH K9540
YOM: 1970
Manufacturer: TMP
Made in: Russia

Specification:

Nominal force: 1000 tons
Not reaching of lower dead point by the slide: 8 mm
Slide stroke: 500 mm
Number of continuous strokes per minute: 20
Max. number of single strokes per minute: 15
Closed height: 680 mm
Adjustment of closed height: 200 mm
Slide dimensions:
 -Left-to-right: 1250 mm
 -Front-to-back: 1250 mm
Bolster plate dimensions:
 -Left-to-right: 1250 mm
 -Front-to-back: 1250 mm
Main drive electric motor power: 75 kW
Overall dimensions:
 -Left-to-right: 4310 ± 40 mm
 -Front-to-back: 3820 ± 40 mm
 -Height above floor level: 6980 ± 60 mm
