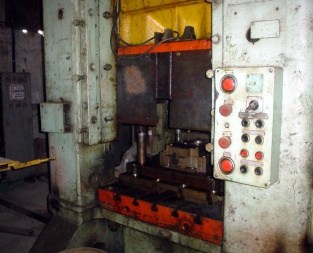

Trimming press VORONEZH K9536

Offer #1871

Trimming press VORONEZH K9536
YOM: 1974
Manufacturer: Voronezh
Made in: Russia

Specification:

Rated force: 400 t
Slider stroke: 360 mm
Min. distance between table and slide: 6 mm
Number of strokes min-1: 27
Number of the single cut-in min-1: 19
Maximum distance between table and slider (in lower position of slider): 470 mm
Size of adjustment of distance between down-stamp a plate and slider: 160 mm
Table overall dimensions:
 -From left to right: 1000 mm
 -From front to rear: 1000 mm
 -Height: 160 mm
Slider overall dimensions: 800 x 800 mm
Hole in the table: 630 x 630 mm
Window in rack: 700 x 550 mm
Main motor power: 45 kW
Max. working strokes of hydro-air-cushion: 100 mm
Max. force of pushing out: 12 t
Hydro-air-cushion:
 -Max. working course: 100 mm
 -Max. force of pushing out: 12 t
 -Max. force of a clip: 63 t
Press overall dimensions: 2900/3100/5580 mm
Press weight: 34000 kg
