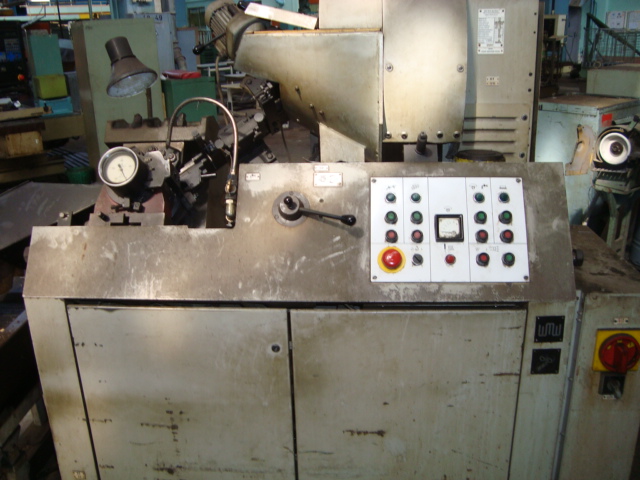

Automatic thread rolling machine UPAW 8

Offer #1414

Automatic thread rolling machine UPAW 8
Serial number: 0157
Manufacturer: VEB Wema Bad Duben
Made in: Germany

Specification:

Rolled thread:
 -Max.: M8
 -Min.: M3
Rod length:
 -Max.: 80 mm
 -Min.: 4 mm
Max. length of the rolled thread: 60 mm
Max. rod length without the thread: 62 mm
Spindle diameter: 127 mm
Number of spindle revs (stepless adjustment): 0-300 rpm
Max. productivity of the machine: 1500 pcs/h
Main drive motor power: 11 kW
Machine dimensions:
 -Length: 2000 mm
 -Width: 1060 mm
 -Height: 1900 mm
Machine weight: 2400 kg
