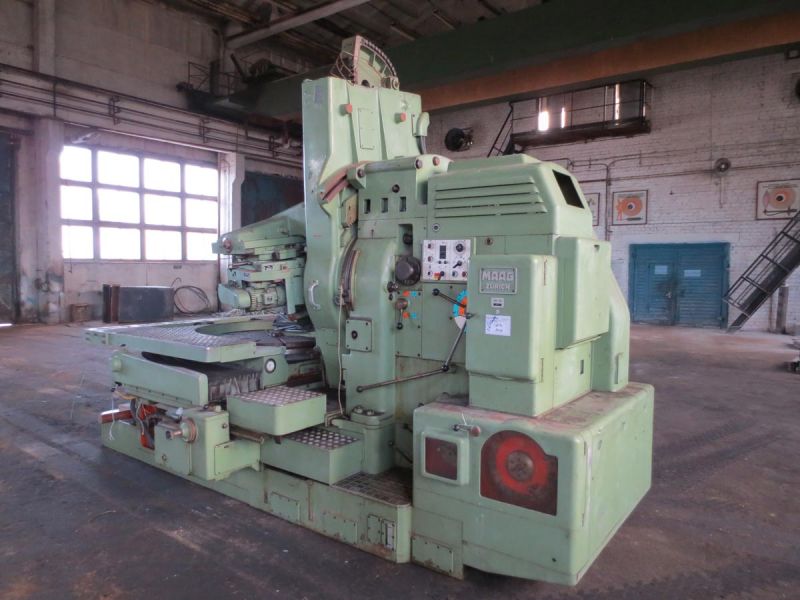

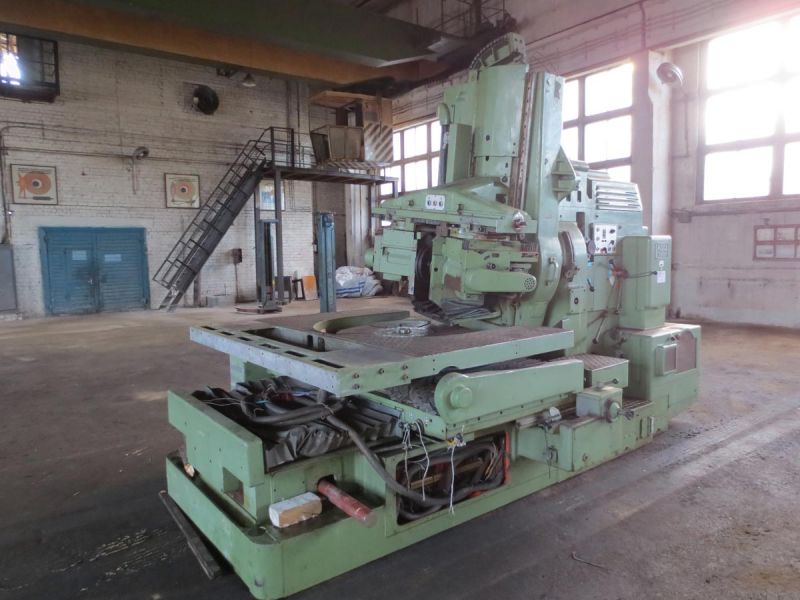

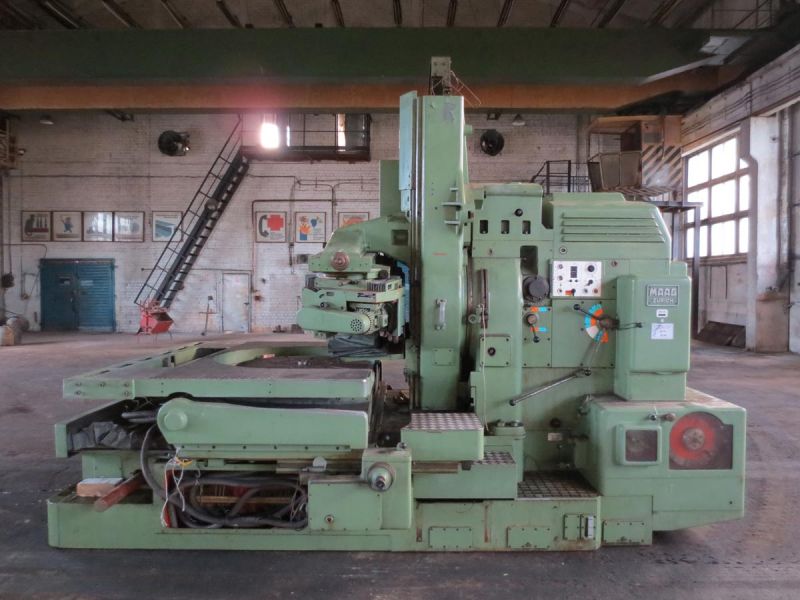

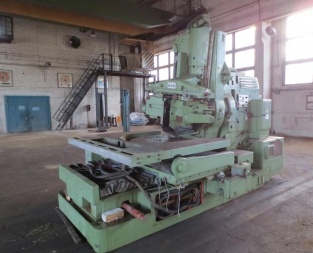

Gear grinding machine MAAG SHS 180

Offer #690

Gear grinding machine MAAG SHS 180
Serial Number: 6667
Made in: Switzerland
Manufacturer: MAAG

Specification:

Work-piece diameter:
 -Max: 1800 mm
 -Min: 250 mm
Table diameter: 1600 mm
Max work-piece weight: 6000 kg
Modul:
 -Max: 24
 -Min: 4
Number of teeth:
 -Max: 450
 -Min: 12
Max teeth angle: 30 degrees
Max stroke: 780 mm
Machine dimension: 6460x3740x3775 mm
Machine weight: 24 ton
