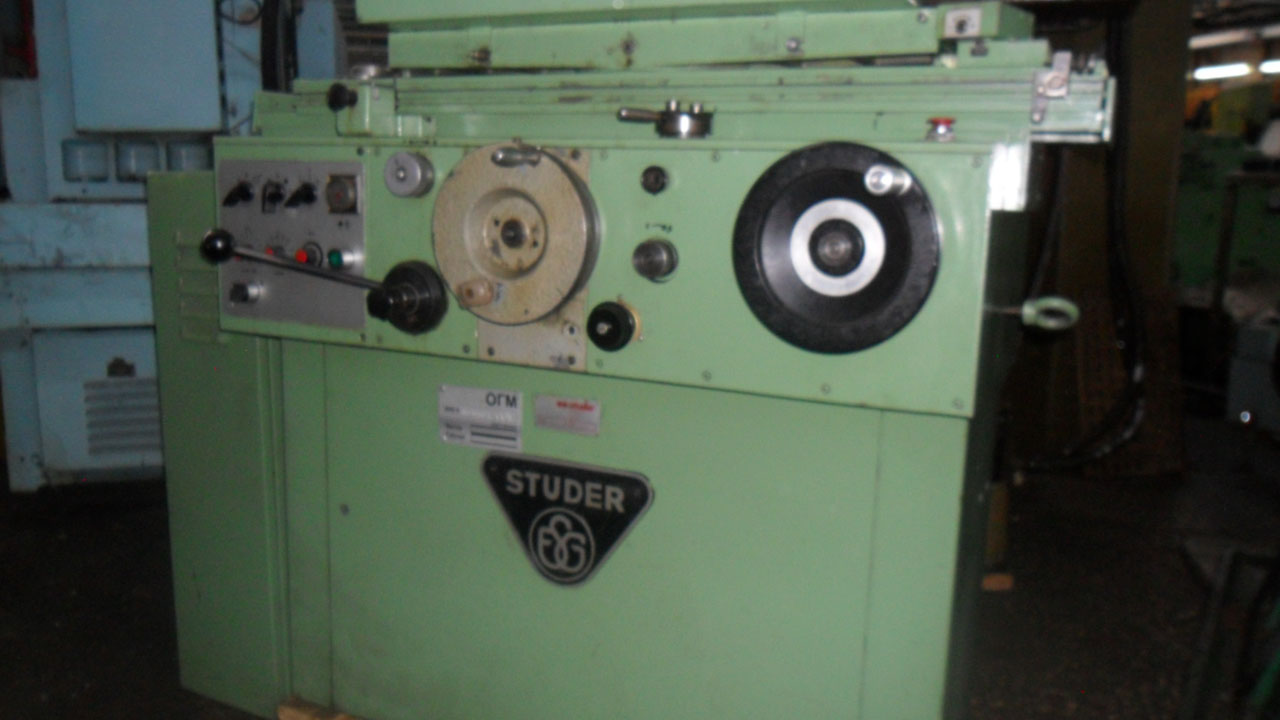

Universal cylindrical grinding machine STUDER OC

Offer #1604

Universal cylindrical grinding machine STUDER OC
Manufacturer: FRITZ STUDER
Made in: Switzerland

Specification:

Height of centers: 80 mm
Distance between centers: 400 mm
Stroke of longitudinal carriage: 1-420 mm
Table speed: 0,1-3,5 m/min
Range of headstock revs: 60-1200 rpm
Grinding wheel:
 -Diameter: 300 mm
 -Width: 30 mm
 -Opening: 127 mm
Rapid feed: 30 mm
Max. work-piece weight:
 -Between centers: 20 kg
 -In the chuck: 5 kg
Total required power: approx. 5 kW
Occupied area:
 -Length: 1770 mm
 -Width: 1150 mm
Weight: 900 kg
