Gear grinding machine Reishauer ZB

Offer #1858

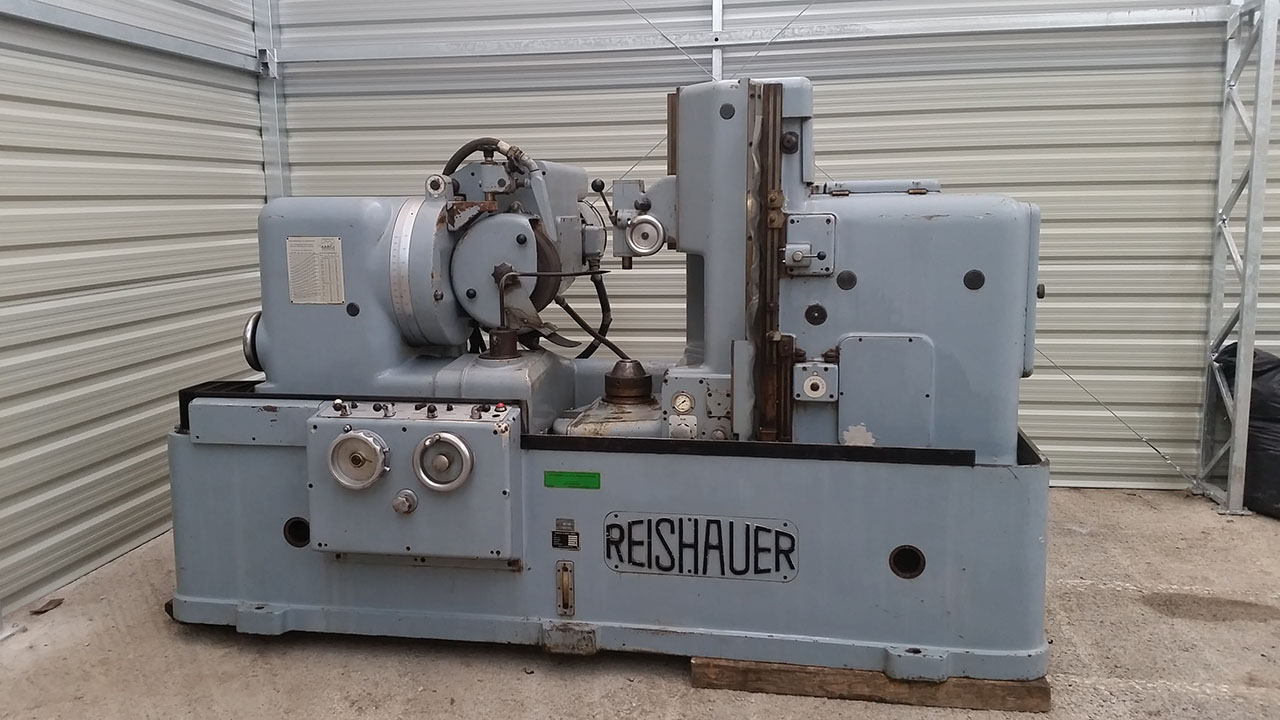

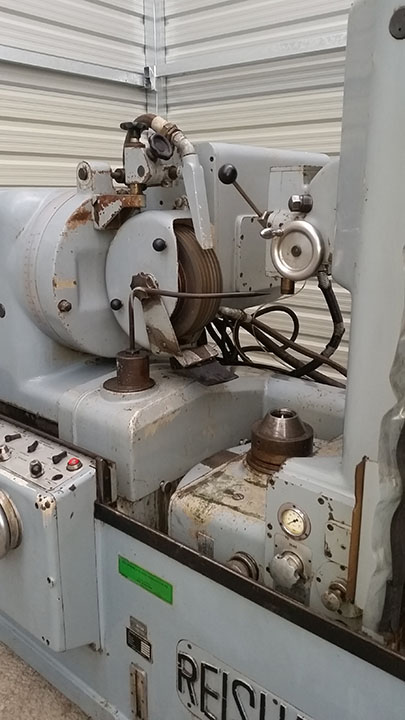

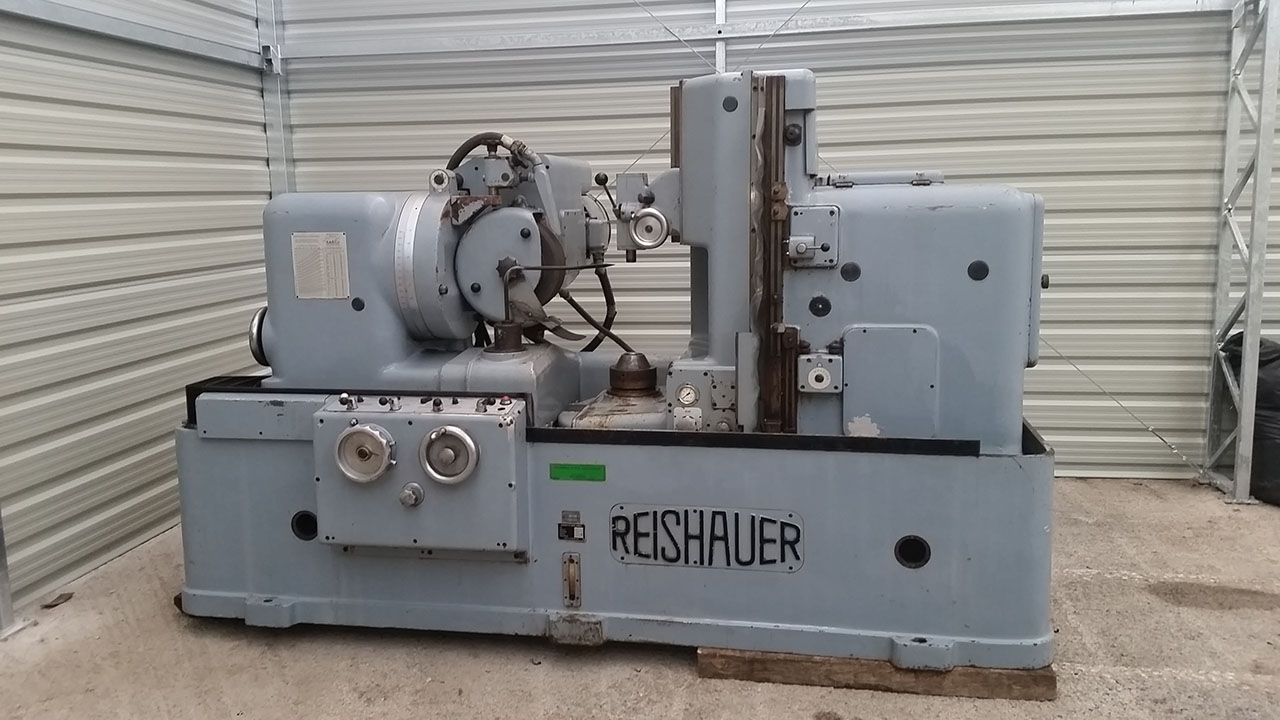

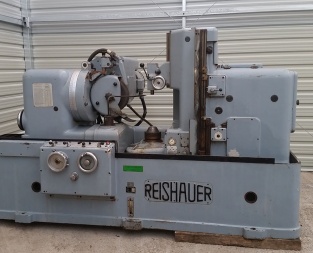

Gear grinding machine Reishauer ZB
Manufacturer: Reishauer AG
Made in: Switzerland

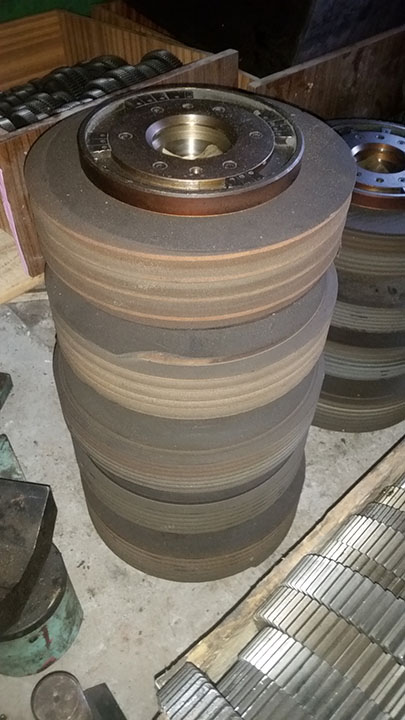

Some accessories are available.

Specification:

Gear diameter: 54-700 mm
Max. gear width: 280 mm
Distance between centres: 256-570 mm
Number of teeth:
 -Min.: 16
 -Max.: 240
Module:
 -Min.: 1.5
 -Max.: 7
Pressure angle:
 -Min.: 14 degrees 30 min
 -Max.: 30 degrees
Max. helix angle: +/- 30 degrees
Helical pitch with 30 teeth:
 -Min.: 404
 -Max.: 7725 mm
Slide stroke: 290 mm
Max. longitudinal crowning with a pressure angle of 20 degrees: 0,022 mm
Max. work-piece weight incl. fixing: 300 kg (approx.)
Max. diameter of grinding wheel: 280-400 mm
Max. width of grinding wheel: 104 mm
Total power requirement: 9,6 kW
Dimensions of machine: 3900x2800x2200 mm
Weight of machine: 8000 kg
