Offer #895

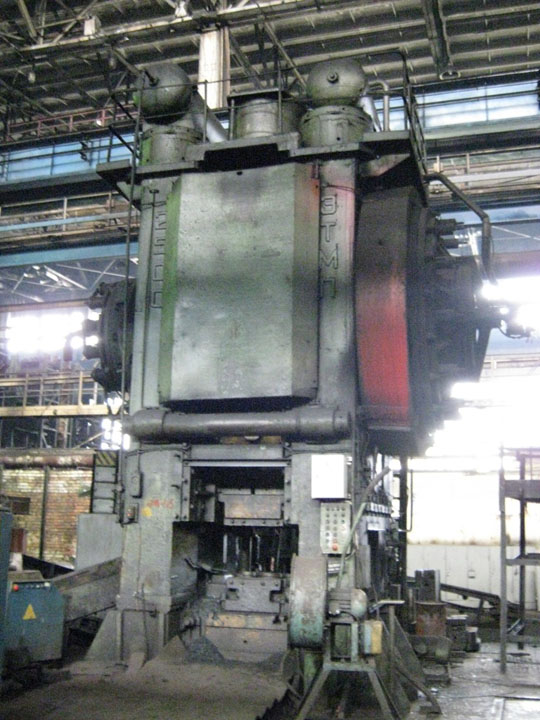

Hot forging press KRAMATORSK K8544
YOM: 1971
Manufacturer: Kramatorsk
Made in: Ukraine


Nominal force: 2500 tons
Slide stroke at the nominal force: 0,1 mm
Slide stroke: 350 mm
Min. distance between table and slide at its lower position (at upper position of adjustment): 890 mm
Distance adjustment between table and slide: 10 mm
Number of slide strokes per minute: 60
Slide dimensions:
 -Left-to-right: 1070 mm
 -Front-to-back: 1120 mm
Table dimensions:
 -Left-to-right: 1200 mm
 -Front-to-back: 1400 mm
Window dimensions in bed columns:
 -Height: 850 mm
 -Width: 850 mm
Distance between columns (in daylight): 1320 mm
Table height over floor: 450 mm
 Upper (in the slide):
 -Max. ejection force: 5 tons
 -Max. stroke: 60 mm
 Lower (in the table):
 -Max. ejection force: 10 tons
 -Max. stroke: 70 mm
Electric motor of slide drive:
 -Power: 125 kW
 -Rotation: 970 rpm
 -Max. external diameter: 1780 mm
 -Rotation: 325 rpm
 -Weight: 5300 kg
Press weight: 170 tons
