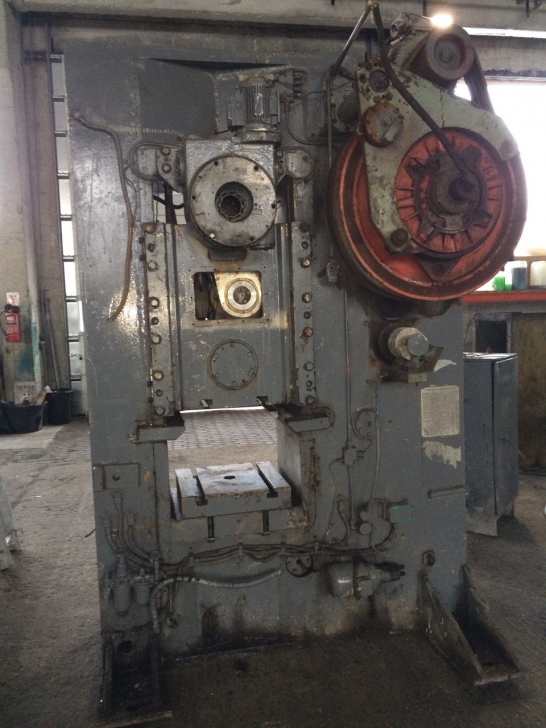

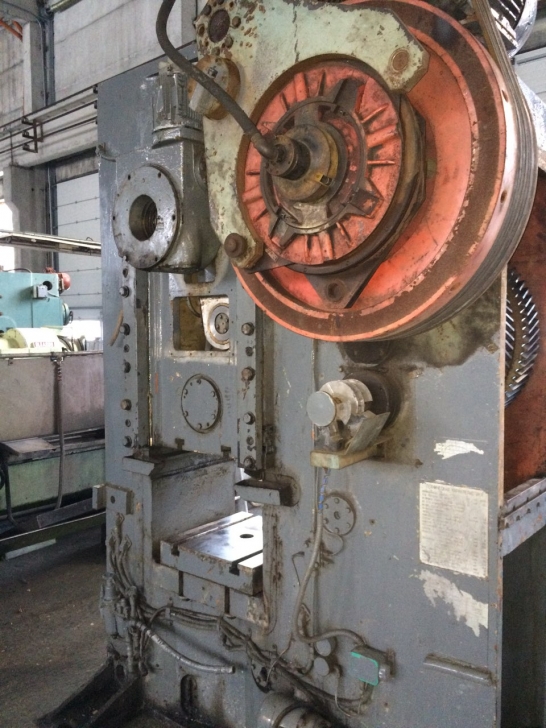

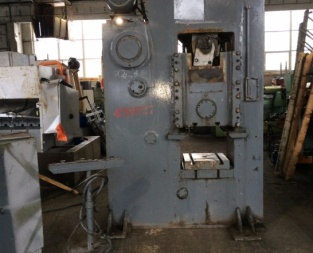

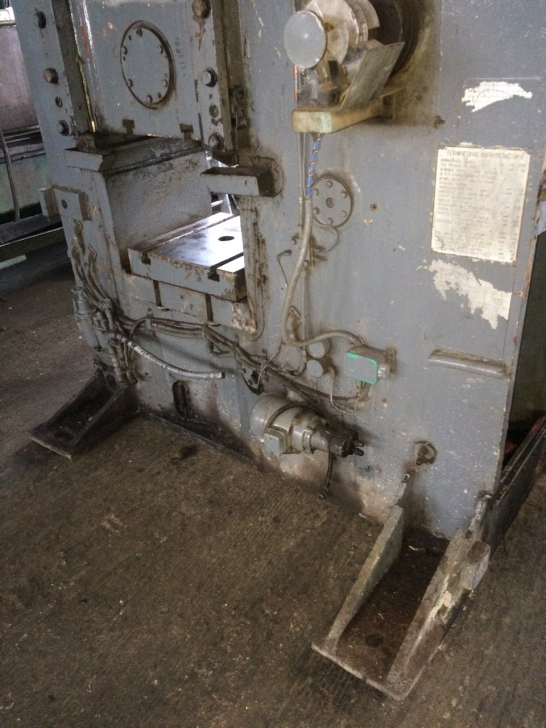

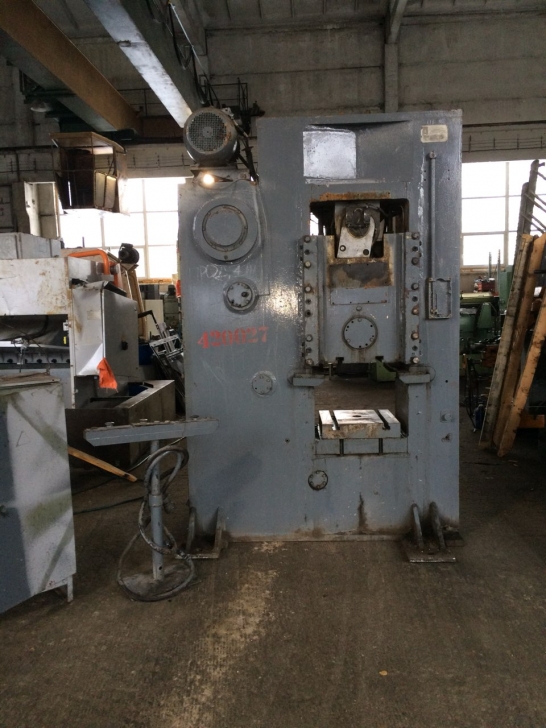

Knuckle joint press KUZLITMASH KB8336

Offer #1812

Knuckle joint press KUZLITMASH KB8336
Manufacturer: Kuzlitmash Plant
Made in: Belarus

Specification:

Nominal pressing force: 400 tons
Slide stroke: 130 mm
Slide stroke number in 1 min: 50
Distance between a plate under a stamp and slider: 375 mm
Adjustment of the distance between the bolster plate and the slide: 12 mm
Table size: 500x500 mm
Voltage: 50 Hz, 380 V
Motor capacity: 12 kW
Machine dimensions: 1940x1240x2800 mm
Total weight: 8425 kg
