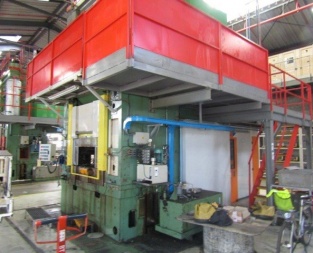

Knuckle joint press VORONEZH KB8044

Offer #1963

Knuckle joint press VORONEZH KB8044
YOM: 1990
Manufacturer: Voronezh Tyazhmehpres
Made in: Russia

Specification:

Nominal force: 2500 tons
Ram stroke: 190 mm
Number of strokes in 1 minute: 14-20
Shut height: 560 mm
Bolster plate-to-ram adjustable stroke: 15
Ram course in bottom position with max. power: 4,5
Table size: 1530x1530 mm
Ram size front-to-back: 900 mm
Distance between slides: 1420 mm
Lower knockout:
 -Stroke: 50 mm
 -Force: 225-450 kN
Upper knockout:
 -Stroke: 30 mm
 -Force: 250 kN
Main motor: 77 kW, 380 V
Overall dimensions: 4920x3340x5980 mm
Weight: 125480 kg
