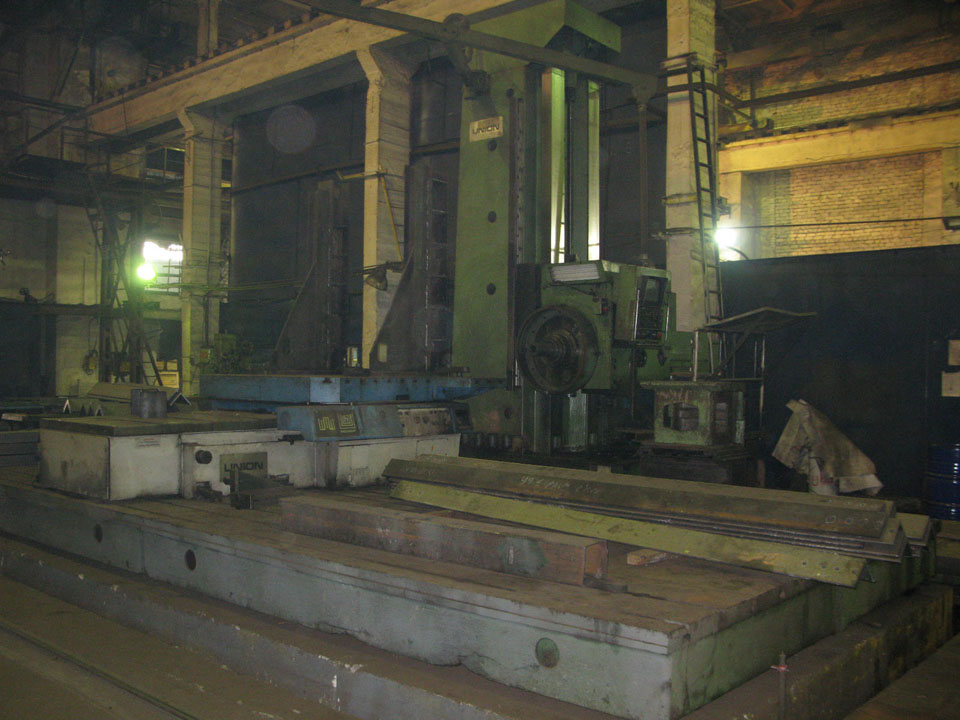

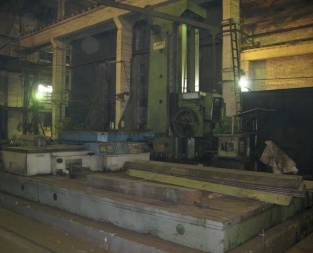

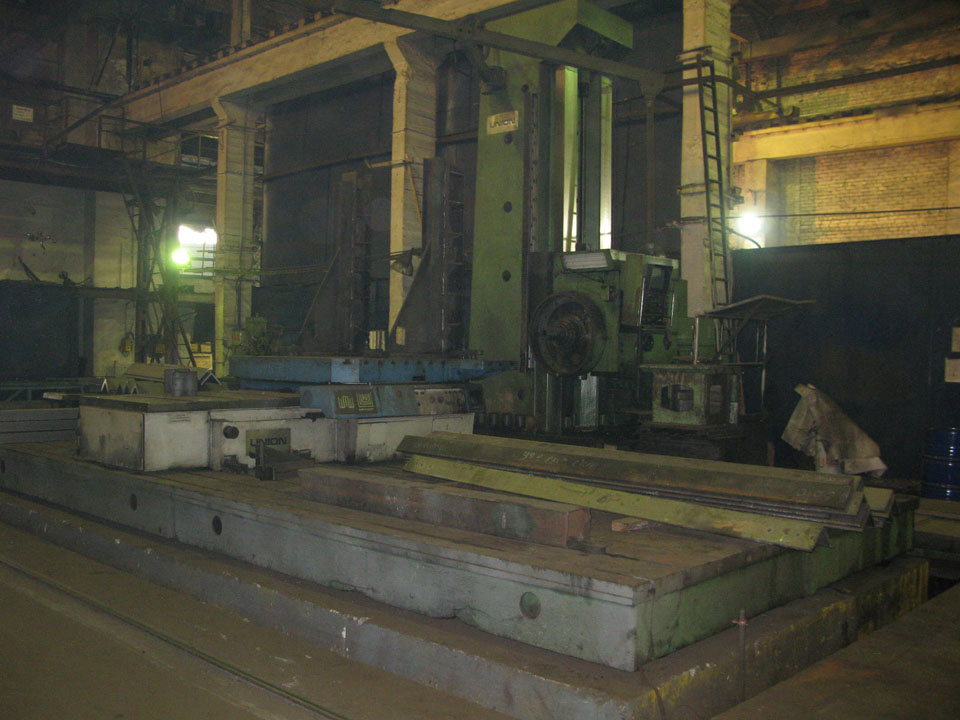

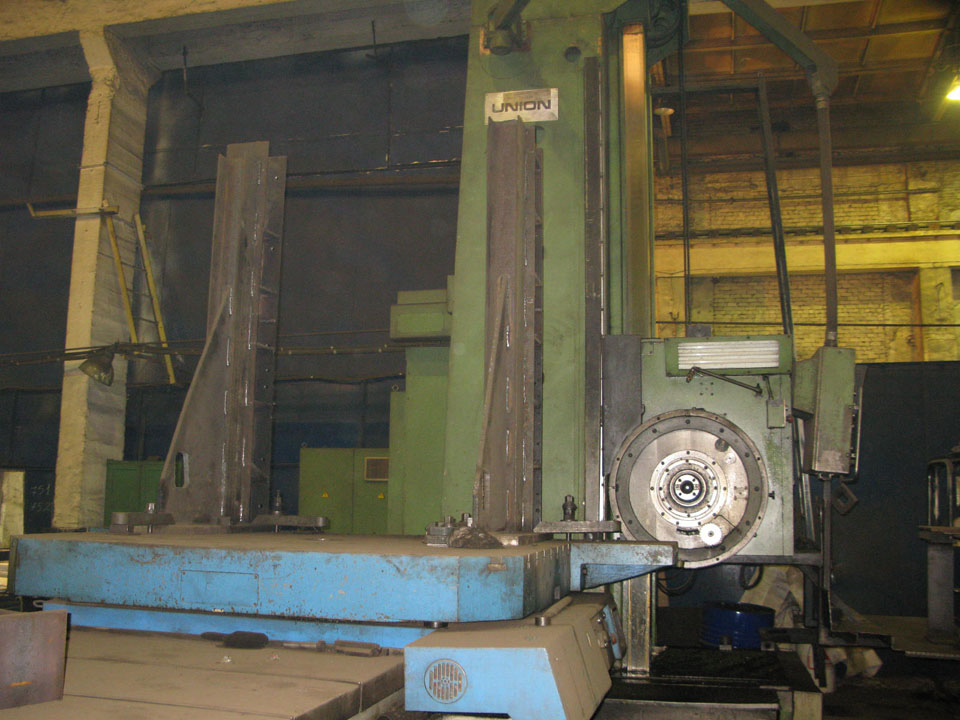

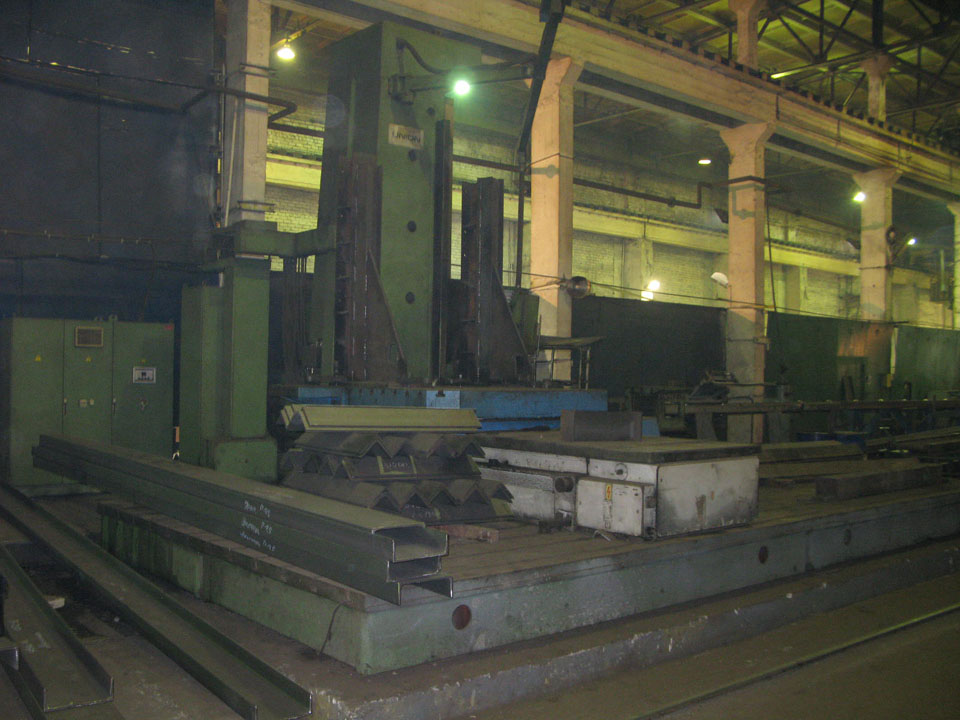

Floor type boring and milling machine UNION BFP 130 NC

Offer #1441

Floor type boring and milling machine UNION BFP 130 NC
YOM: 1991
Manufacturer: UNION Werkzeugmaschinenfabrik Gera GmbH
Made in: Germany

No radial support (faceplate) - it's lost. Documentation is available.

Specification:

Diameter of pin: 130 mm
Transversal stroke of the table (X): 7000 mm
Vertical stroke of the carriage door-paperback (Y): 2520 mm
Longitudinal travel of the table (W): 900 mm
Race of pin (Z): 420 mm
Faceplate movement (U): 320 mm
Spindle speed on steps in 4 areas: 5–1000 rpm
Rotation of caliper in two areas: 5–250 rpm
Infinitely variable feed on all axes: 5–2500 / 2–2500 mm/min
Speed fast X-Y: 5000 mm/min
Speed fast Z: 3300 mm/min
Speed fast W-U: 3150 mm/min
Table movement in length: 1250 mm
Surface of the table: 1600x2000 mm
Table clamping area: 1800x2000 mm
Table rotation: 360 degrees
Table positioning (optical): 4x90 degrees
Table:
 -Height to clamping area: 920 mm
 -Total length: 3700 mm
 -Total width: 2100 mm
Max. table load: 12500 kg
Spindle taper: SA 50
Numerical control: DR-HE/DENHAIN TNC 355
Motor power: 50 kW
Dimensions (LxWxH): 13000x3700x5500 mm
Total weight: 55700 kg
