Offer #2187

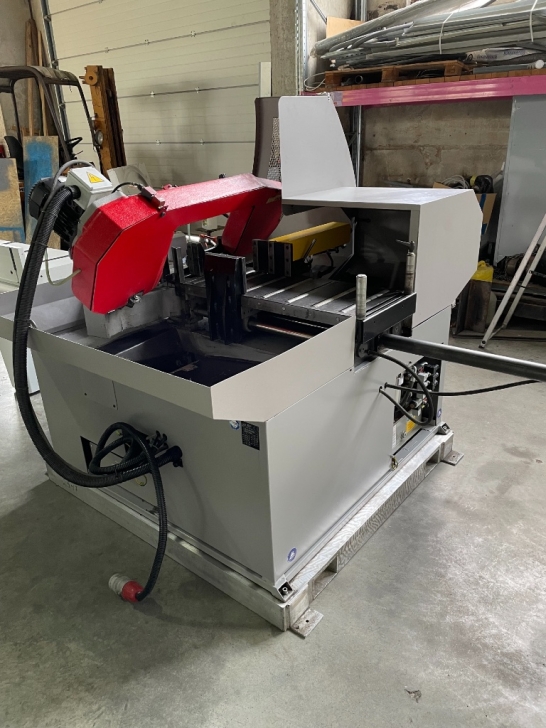

Automatic strip metal cutting machines BOMAR 290.250 GANC F
YOM: 2017
Manufacturer: BOMAR spol.s r.o.
Made in: Czech Republic
Specification:
Engine power: 1,5 kW
Strip rotation speed: 20x120 m/min. (console controlled, variable)
Strip dimensions: 2910x27x0,9 mm
Cut width: 1,2 mm
Cutting range: 90 and up to 60 degrees to the right
Two clamps: feed and workpiece locking
Workpiece position point: 770 mm
Maximum workpiece displacement: 600 mm
Minimum workpiece remnant: 80 mm (in automatic mode)
Strip off sensor (in case the saw breaks)
Ergonomic, adjustable control panel console
Dimensions: 2515x2105x1465 mm
Weight: 650 kg
Description:
By pressing a single button starts the full cutting cycle. During the cycle, the machine performs the following operations:
- the clamp is compressed and the cutting strip is activated
- frame lowers (cutting in progress)
- the strip stops and the frame is raised to the upper position (cut)
- the clamp is released and the workpiece is re-moved according to the required dimension for the next cut.
