Offer #1073

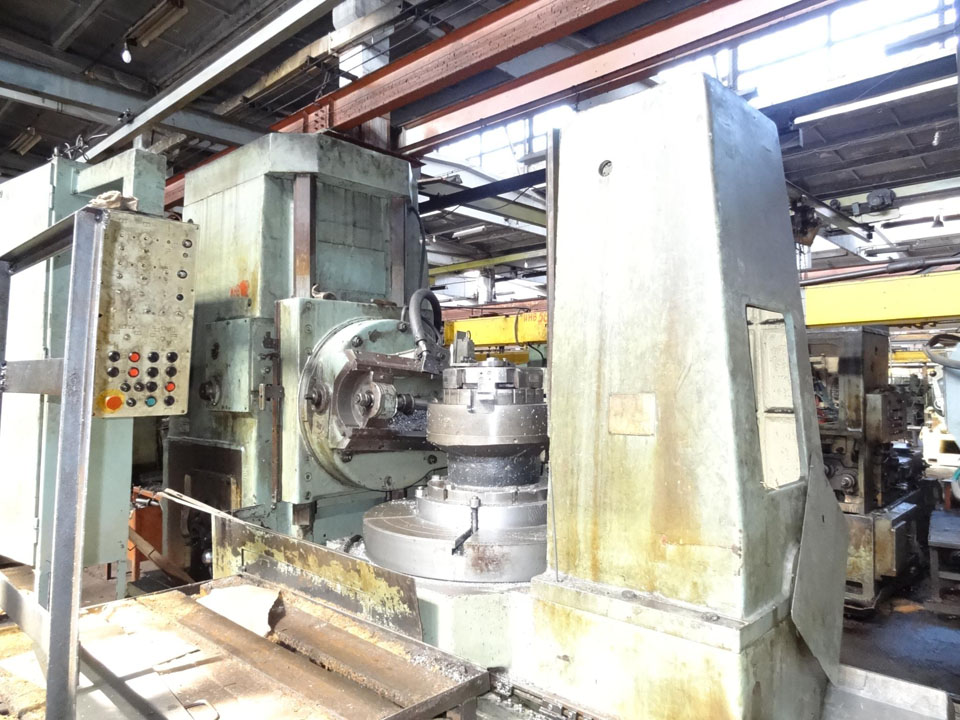

Gear hobbing machine 53A11
YOM: 1986
Manufacturer: Komsomolec
Made in: Russia
Specification:
Max. diameters of gear hobbed:
-Without arbor support arm: 1250 mm
-With arbor support arm: 800 mm
Max. module of teeth cut: 16
Table diameter: 1000 mm
Max. helix angle of gear hobbed: +-/45 degrees
Distance between table and cutter axes: 100-750 mm
Distance between table surface and hob axes: 235-835 mm
Max. dimensions of hob mounted:
-Length: 250 mm
-Diameter: 225 mm
Max. vertical travel of hob slide: 650 mm
Taper of hole in hob slide (Morse): 6
Maximal hob axial travel: 245 mm
Rotation frequency of hob spindle: 28-270 rpm
Feed rates:
-Vertical: 0,15-40 mm/min
-Radial: 0,06-17,2 mm/min
-Tangential: 0,04-19,2 mm/min
Main drive motor power: 15 kW
Machine overall dimensions:
-Length: 4020 mm
-Width: 2350 mm
-Height: 2780 mm
Machine weight: 17900 kg
