Offer #432

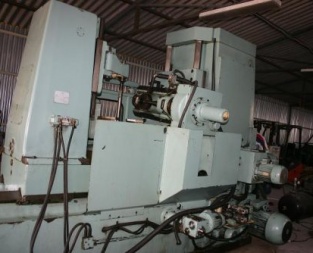

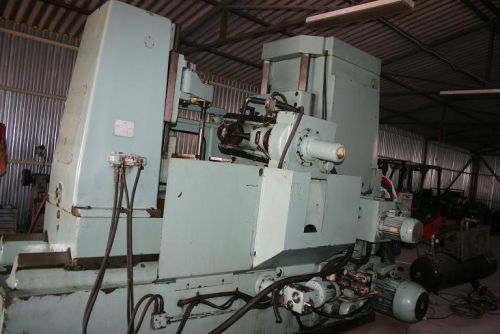

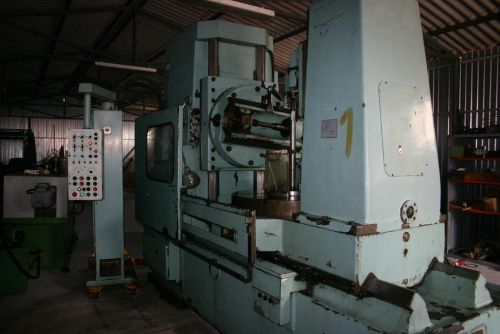

Gear hobbing machine 53A11
YOM: 1978
Made in: Russia
Manufacturer: Komsomolec

Specification:

Max. diameters of gear hobbed:
 -Without arbor support arm: 1250 mm
 -With arbor support arm: 800 mm
Max module of teeth cut: 16
Table diameter: 1000 mm
Max helix angle of gear hobbed: +-/45 degree
Distance between table and cutter axes: 100-750 mm
Distance between table surface and hob axes: 235-835 mm
Max. dimensions of hob mounted:
 -Length: 250 mm
 -Diameter: 225 mm
Max vertical travel of hob slide: 650 mm
Taper of hole in hob slide (Morse): 6
Maximal hob axial travel: 245 mm
Rotation frequency of hob spindle: 28-270 rpm
Feed rates:
 -Vertical: 0,15-40 mm/min
 -Radial: 0,06-17,2 mm/min
 -Tangential: 0,04-19,2 mm/min
Main drive motor power: 15 kW
Machine overall dimension:
 -Length: 4020 mm
 -Width: 2350 mm
 -Height: 2780 mm
Machine weight: 17900 kg
