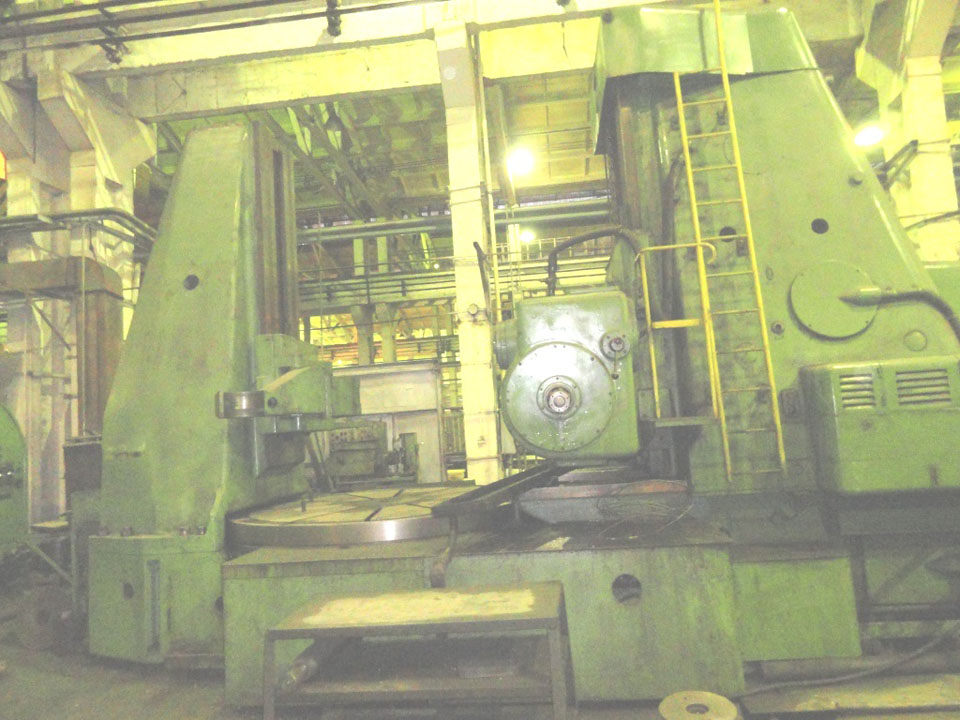

Gear hobbing machine MODUL ZFWZ 3150x30

Offer #1453

Gear hobbing machine MODUL ZFWZ 3150x30
Manufacturer: Veb Modul
Made in: Germany

Specification:

PREPARATION
Max. diameter without the holder: 3150 mm
Max. diameter with the holder: 1600 mm
Min. diameter: 500 mm
Min. width of a tooth:  1000 mm module 30
Max. corner of an inclination of a tooth: 45 degree
Max. rearranging of a tangential pusher: 500 mm

MILL
Max. diameter:  350 mm
Max. length: 440 mm

TIGHTENING A TABLE
Diameter: 2400 mm
Aperture: 500 mm
Depth of an aperture: 1100 mm
The greatest loading: 30 ton
Vertical distance between the middle: 700-1900 mm

SPEEDS
Hob turning speeds: 12,5 - 71 U/min
Feeds – axial: 0-16 mm/U
Feeds - radial: 0-7, 1 mm/U
Feeds - tangential: 0-8,0 mm/U

MILLS AND A SURFACE OF A TABLE
Horizontal distance between the middle: 300-1800 mm

SET
Control system: 6000 kg
Table: 10000 kg
Bed: 8000 kg
Bottom part of bed: 9000 kg
The main rack with ladder: 15000 kg
The back rack: 10000 kg
Pusher of rack: 6000 kg
Box with change gears: 1300 kg
Additional details: 4000 kg
Box with equipment for installation of preparation for the machine: 1500 kg
Tanks: 2000 kg
Electricity box: 900 kg
Hidrostation: 500 kg

Electrical specifications: 380 V, 220V, 50 Hz, 3 MP
Main motor: 70 kW

Dimensions: 6785x5400x4820 mm
Weight: 65 tons
