Gear hobbing machine MODUL ZFWZ 50

Offer #853

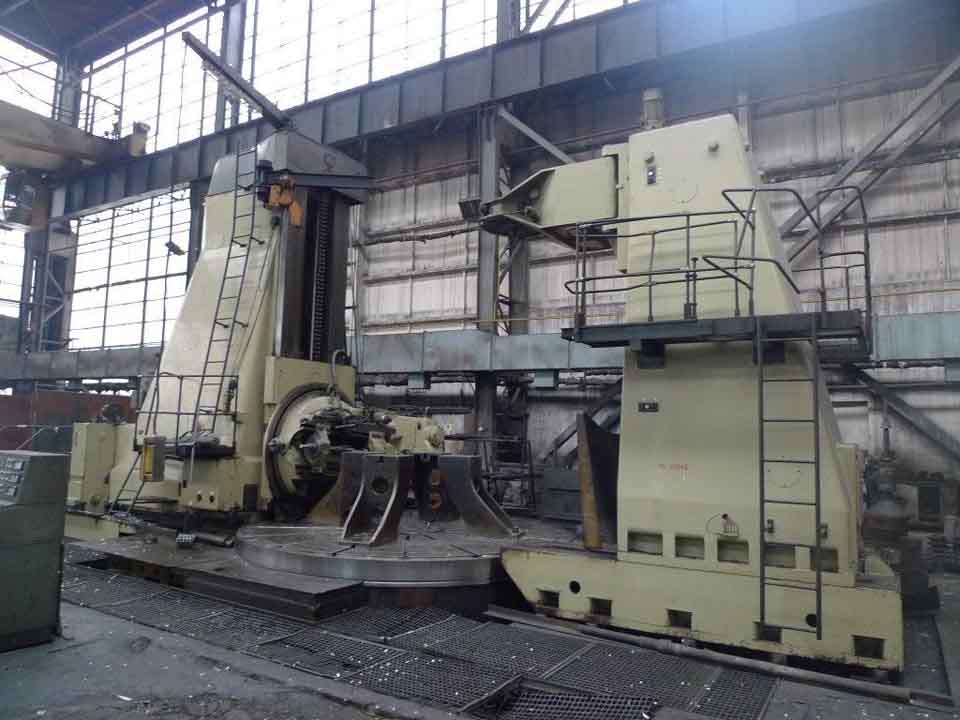

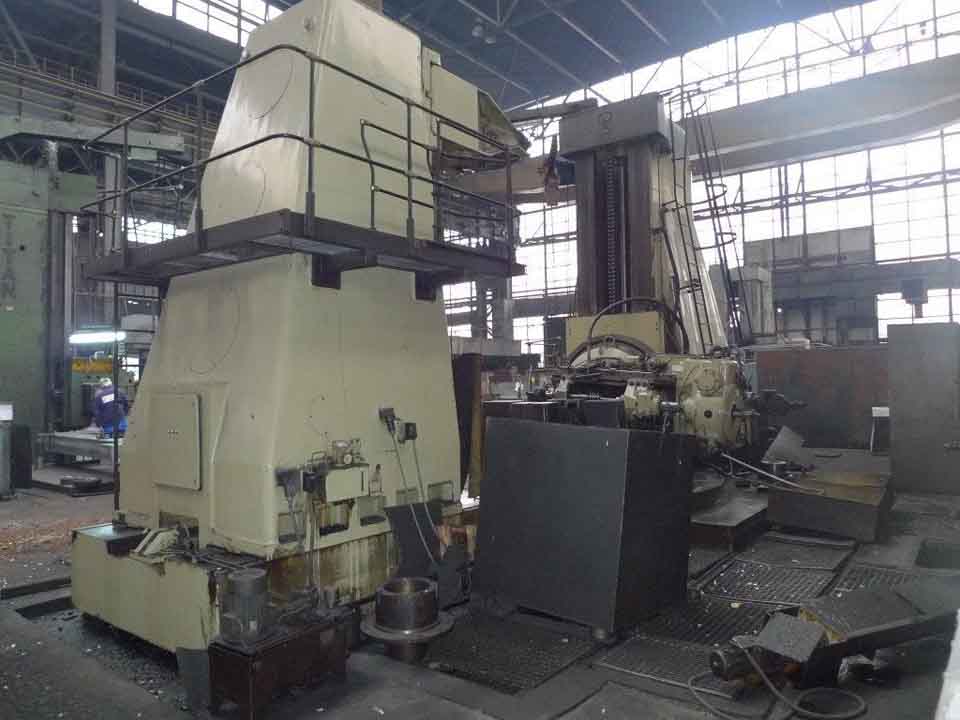

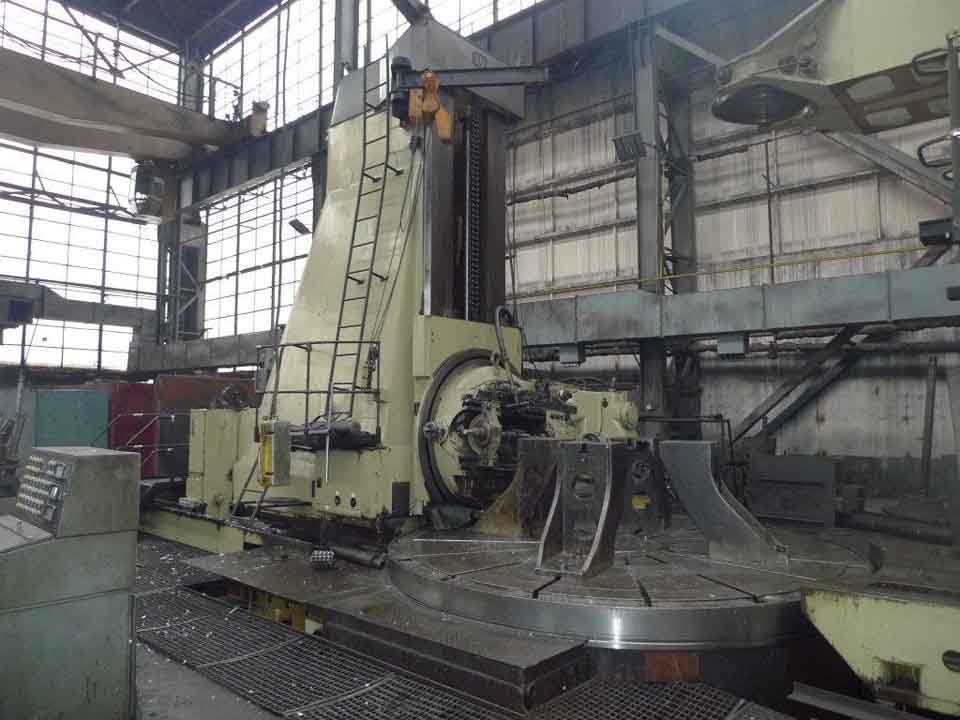

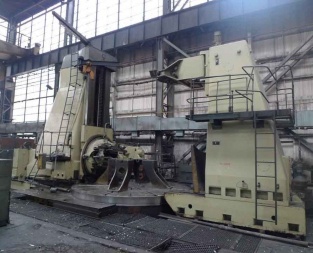

Gear hobbing machine MODUL ZFWZ 50
Manufacturer: MODUL
Made in: Germany

Machine is under power, in excellent condition, very less used.

Specification:

Max gear diameter: 5000 mm
Max modul: 50
Table diameter: 4000 mm
Table center hole:
 -Diameter: 800 mm
 -Depth: 1500 mm
Max work-piece weight: 60 ton
Spindle taper: 100 metric
Electric power requirement: 35 kW
Machine weight: 120 ton
Machine weight with accessories: 140 ton

Five heads available:

1. Universal cutting head
Max diameter: 5000 mm
Max gear width: 1500 mm
Max modul: 40

Inner gear disc cutting head to universal gear cutting head:
Gear diameter:
 -Min: 2000 mm
 -Max: 4000 mm
Max gear width: 300 mm
Max modul: 24
Largest disc cutter:
 -Diameter: 400 mm
 -Width: 130 mm

2. Tangential cutting head
Gear diameter:
 -Min: 800 mm
 -Max: 5000 mm
Max modul: 40
Largest cutter diameter: 400 mm
Cutter tangential move: 850 mm

3. Finger cutting head for outer gears
Gear diameter:
 -Min: 800 mm
 -Max: 5000 mm
Max gear width: 1500 mm
Max modul: 50

4. Finger cutting head for inner gears
Gear diameter:
 -Min: 1000 mm
 -Max: 4000 mm
Max gear width: 350 mm
Max modul: 50

5. Additional plano milling head for ring millings

Other accessories:

 -Change gears (very less used - see on photos)
 -Table supports (8+8 pcs, all scew)
 -Arbors
 -Weight
 -Centering devices
 -Books
