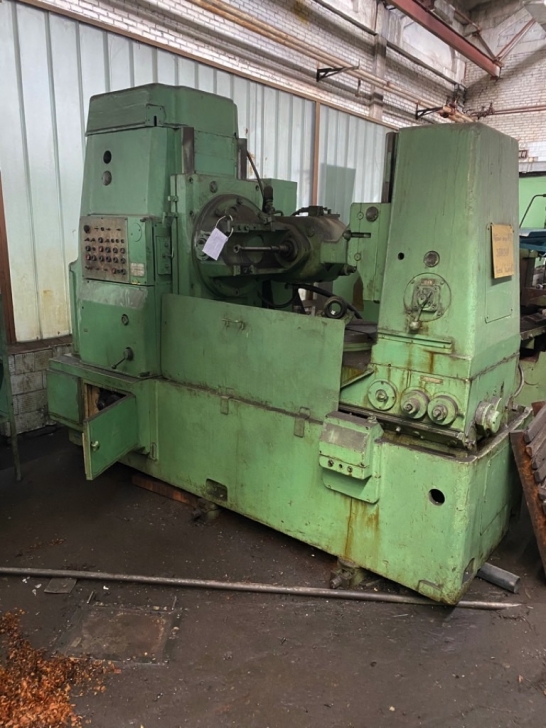

Vertical gear hobbing machine 53A80H

Offer #2139

Vertical gear hobbing machine 53A80H
YOM: 1979
Manufacturer: KOMSOMOLEC
Made in: Russia
Max. wheel diameter: 800 mm
Max. module: 10
Min. module: 8
Table diameter: 630 mm
Max. angle of inclination of the teeth of the wheels:  +/- 45 degree
Distance between the axes of the table and cutter: 80-500 mm
Distance from the plane of the table to the axis of the cutter: 195-595 mm
Max. dimensions of the installed hob:
 -Length: 200 mm
 -Diameter: 200 mm
Max. vertical movement of the support: 400 mm
Bore taper of milling slide (Morse): 5
Maximum axial movement of the cutter: 100 mm
Rotation frequency of the milling spindle: 40-405 rpm
 -Vertical: 0,75-7,5 mm/min
 -Radial: 0,22-2,25 mm/min
Power capacity of main motor: 12,5 kW
Dimensions: 2897x1810x2250 mm
Machinery weight: 10800 kg
