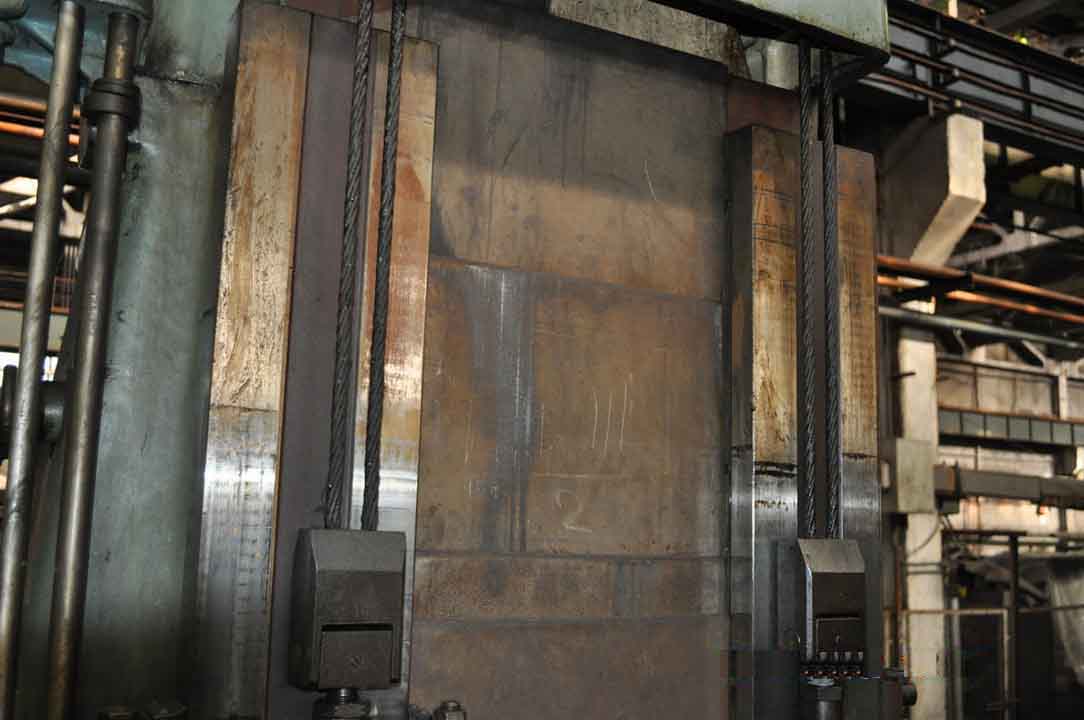

Vertical gear hobbing machine KOLOMNA 5A342P

Offer #581

Vertical gear hobbing machine KOLOMNA 5A342P
YOM: 1991
Manufacturer: KOLOMNA
Made in: Russia

Machinery tool provides high accuracy of processed wheels.
It has tail-stock and accessories.

Specification:

Max. diameter gears cut: 2000 mm
Max. vertical moving of milling support: 900 mm
Max. module of processed wheel (not less):
 -Worm mill: 20
 -Disk mill: 25
 -Manual mill: 30
Table diameter: 1800 mm
Max. work-piece weight: 20 tons
Max. corner: +/- 45 degree
Diameter of installed worm mills: 300...500 mm
Amount of cutting teeths: 10...1800
Spindle speed: 8...125 rpm
Electricity: 50 Hz, 380 V
Main motor power: 20 kW
Overall dimensions (LxWxH): 8600x4440x3700 mm
Machine weight: 32040 kg
