Gear shaper 5A122

Offer #1131

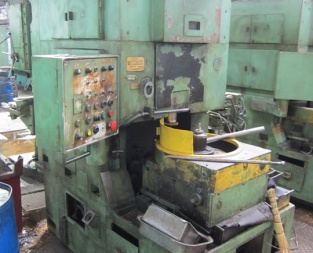

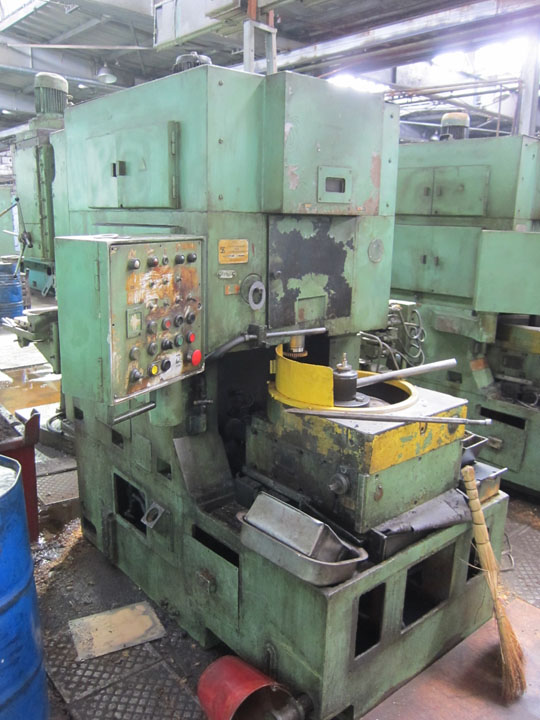

Gear shaper 5A122
Manufacturer: B. Xmelnickovo
Made in: Russia (USSR)

Quantity: 15 units

Semiautomatic gear shaping machine 5A122 is used for cutting of cylindrical and worm wheels in large-scale, batch and single unit production.

Specification:

Accuracy class according to GOST 8-82
Max. dividing diameter of a processed gear at external and internal gearing: 250 mm
Max. diameter of installed work-piece: 300 mm
Max. module of cut gears: 5 mm
Max. width of cut gear wreath: 50 mm

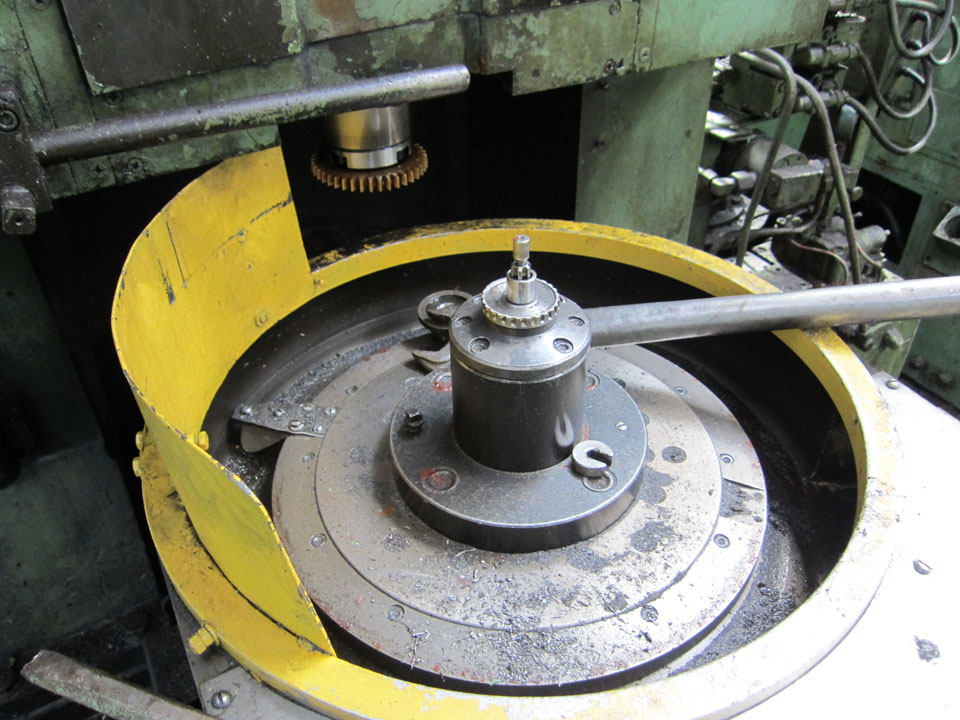

Diameter of working table area: 320 mm
Max. nominal dividing diameter of the ram according to GOST 9323-79: 100 mm
Distance between lower basis plane of the machine and working table area: 895 mm
Max. stroke length of the ram: 90 mm
Max. distance between the axis of the tool spindle and the table axis: 260 mm
Max. movement of the table axis in relation to the axis of the tool spindle: 340 mm
Rapid rotation and the table movement are available
Rapid rotation and the tool spindle movement are available
Machinery dimensions: 2035x2630x2230 mm
Machinery weight: 5000 kg
