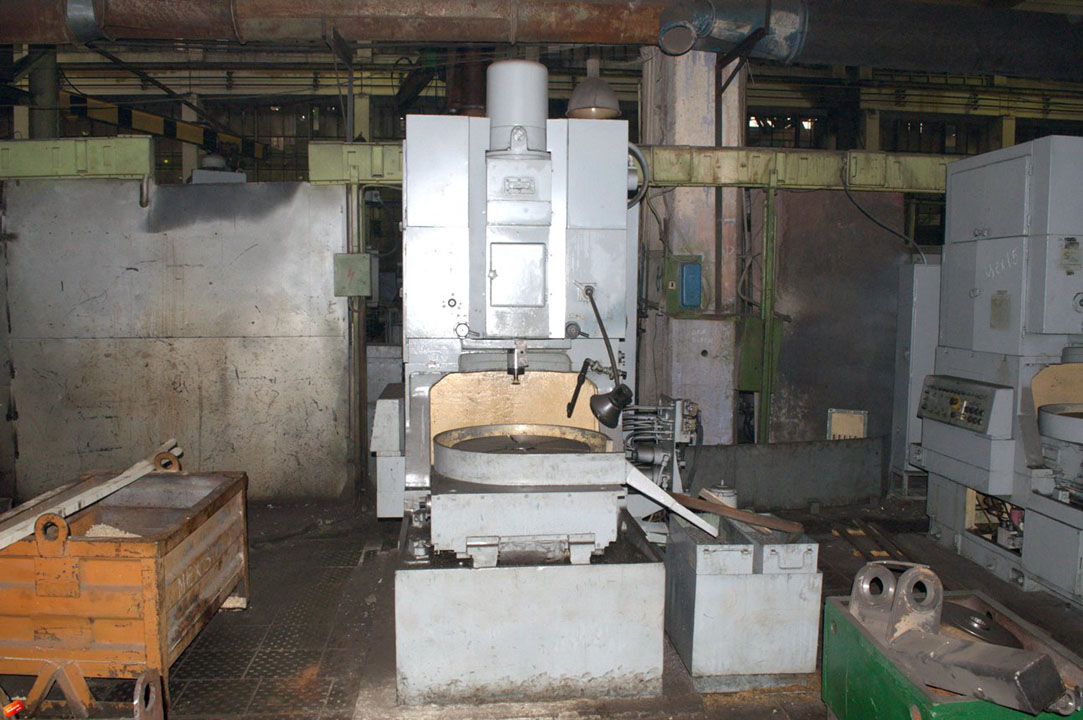

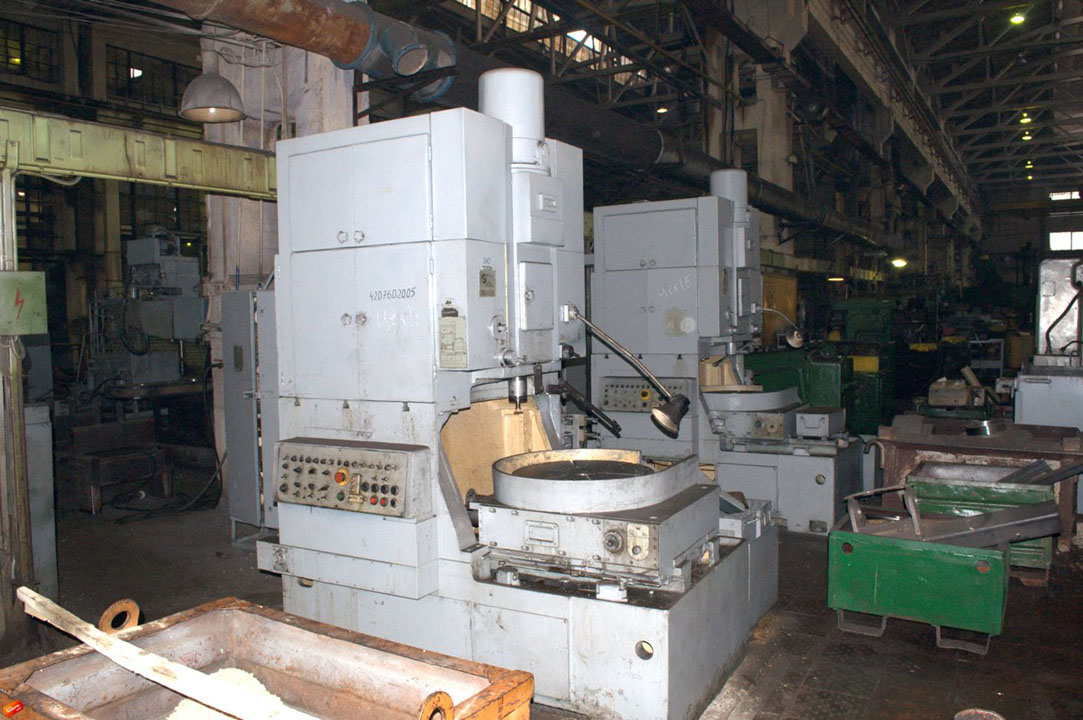

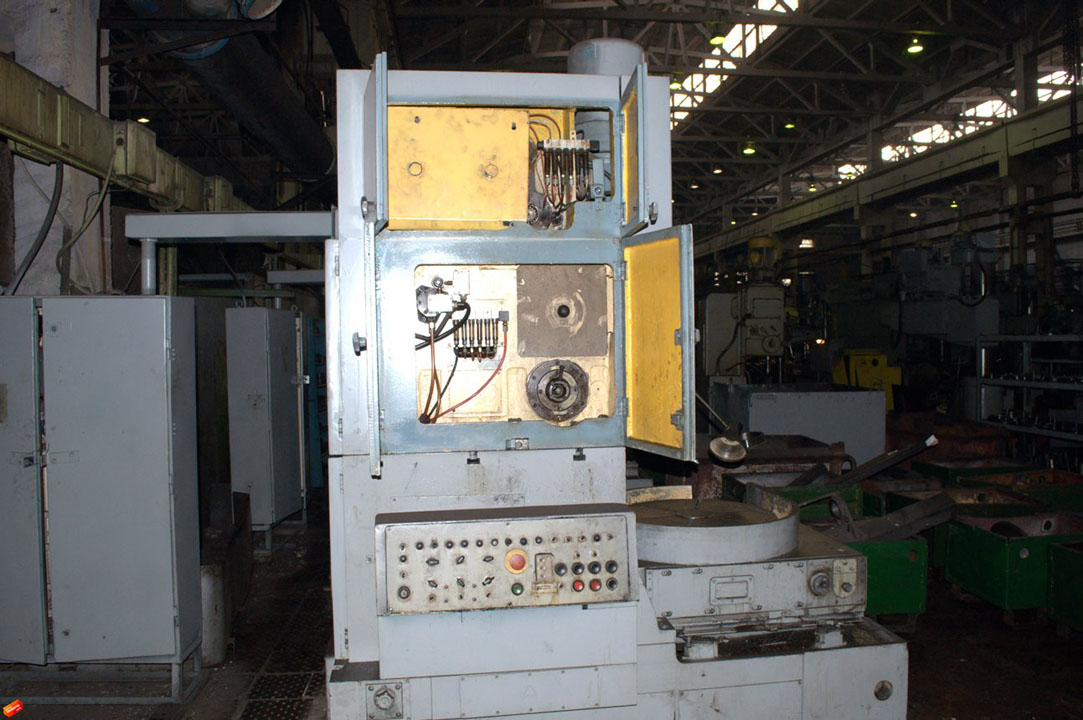

Gear shaping machine 5A140P

Offer #1307

Gear shaping machine 5A140P
YOM: 1996
Manufacturer: KOMSOMOLEC
Made in: Russia

Specification:

Max. working diameter: 500 mm
Max. working height: 100 mm
Max. module: 8
Table travel in relation to the tool axis: 355 mm
Speed of rapid table travel: 1500 mm/min
Rapid adjustment rotation of the table: 4,5 rpm
Distance between table axis and tool axis:
 -Min.: 0 mm
 -Max.: 355 mm
Distance between table mirror and end of tool spindle:
 -Min.: 120 mm
 -Max.: 270 mm
Max. stroke of tool spindle: 125 mm
Spindle travel: 150 mm
Tool removal at blank stroke: 0,5 mm
Max. dividing diameter of the processable gear wheel at external and internal gearing: 500 mm
Max. width of the cut wreath: 100 mm

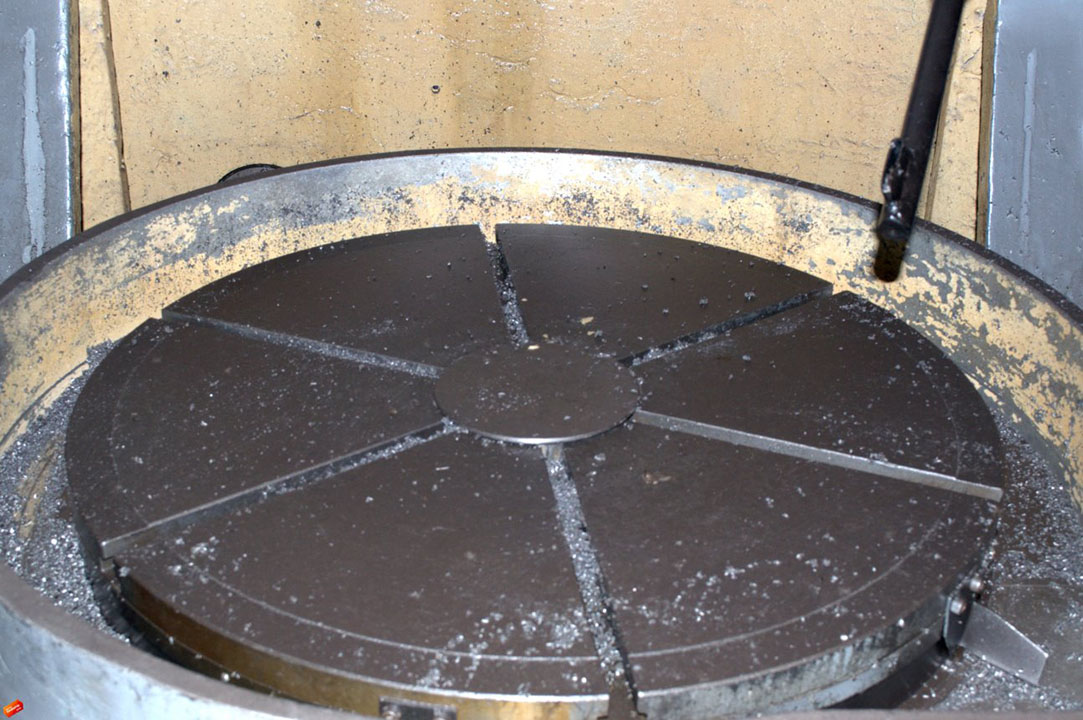

Diameter of work-piece spindle flange of working table according to GOST 6569-75: 560 mm
The basing opening in the table or the work-piece spindle flange: 110 mm
Bore depth: 25 mm
Morse cone in the tool spindle: 5
Distance between lower bed plane and working table surface: 920 mm
Shift size of the column at the tool removal at an angle: ±20 mm
Machine dimensions:
 -Length: 1975 mm
 -Width: 1690 mm
 -Height: 2510 mm
Machine weight: 7500 kg
