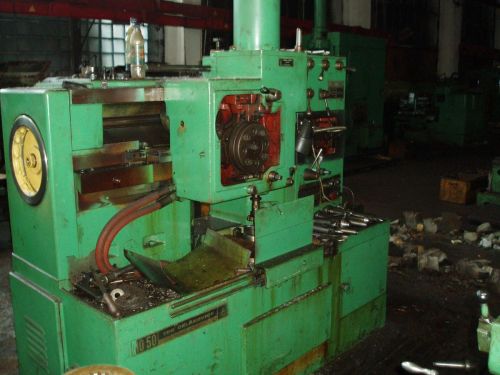

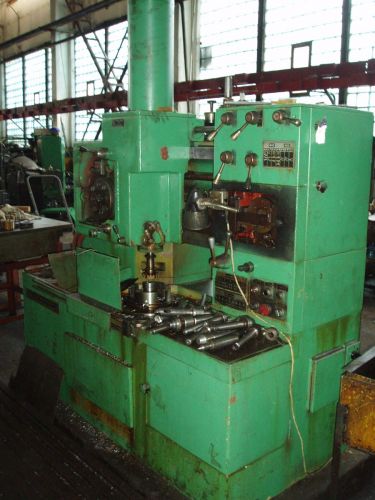

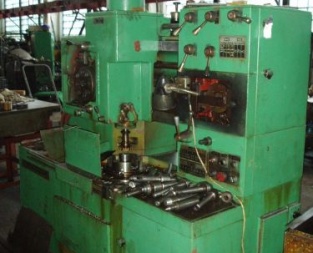

Gear shaping machine TOS OHO-50

  • More pictures
  • Videos
  • Print

Offer #651

Gear shaping machine TOS OHO-50
Made in: Czech Republic
Manufacturer: TOS

Specification:

Max wheel diameter:
 -With external teeth: 500 mm
 -With internal teeth: 450 mm
Min wheel diameter: 50 mm
Gear width: 125 mm
Min module: 1
Max module: 6
Max work-piece weight: 100 kg
Max number of teeth: 300
Min number of teeth: 12
Bore of table: 75 mm
Deep bore of table: 500 mm
Double strokes per min: 56-355
Main motor output: 4 kW
Machine dimensions: 1870x890x1920 mm
Machine weight: 3500 kg
