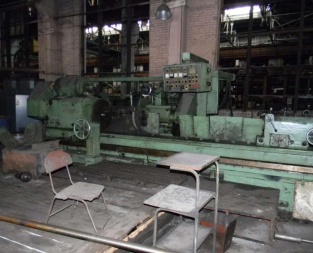

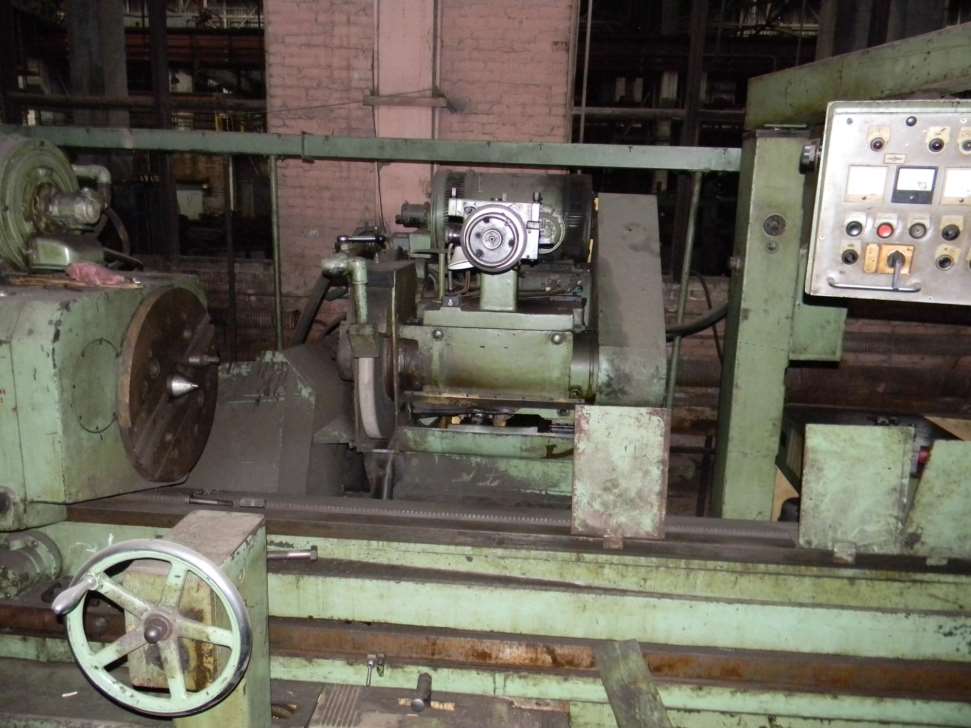

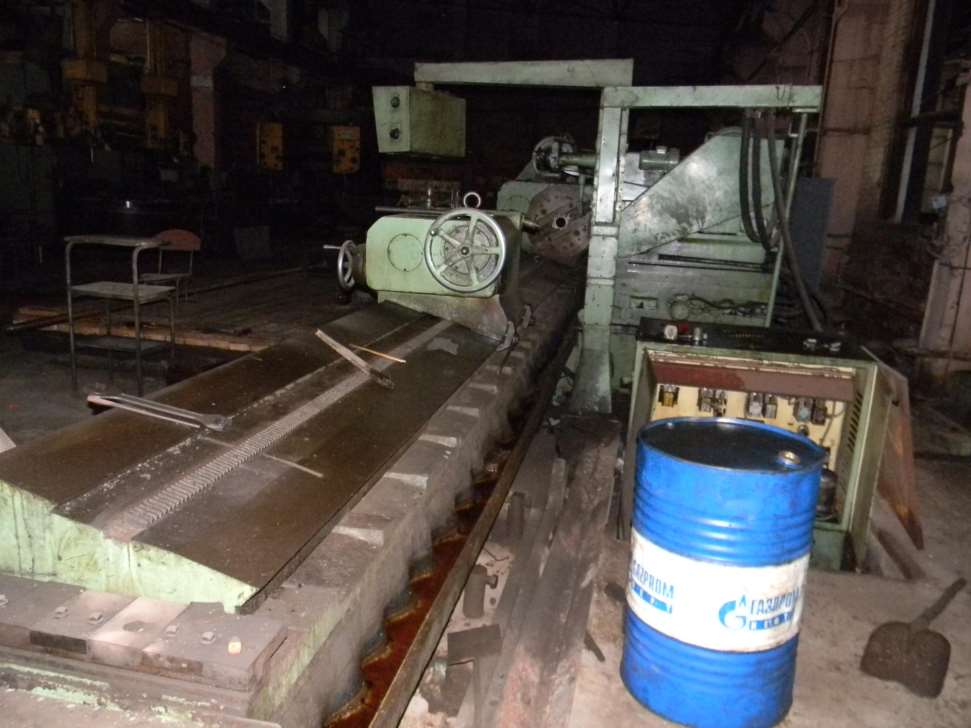

Cylindrical grinding machine 3M197

Offer #914

Cylindrical grinding machine 3M197
YOM: 1986
Manufacturer: KHARKOV
Made in: SSSR Ukraine


Max work-piece:
 -Diameter: 800 mm
 -Length: 6000 mm
 -Weight: 10 ton
Grinding accuracy:
 -Max lack of cylindrical shape (per 800 mm): 0.010 mm
 -Out-of-roundness: 0.003 mm
 -Roughness Ra: 0.32
Grinding wheel dimensions: 750x100 mm
Min grinding diameter: 80 mm
Intermittent in feed per radius: 0.0025-0.03 mm
Surface speed of grinding wheel: 50 m/s
Main motor: 30 kW
Total power requirement: 47,5 kW
 -Length: 17460 mm
 -Width: 4180 mm
 -Height: 2450 mm
Machine weight: 42200 kg
