Slideway Grinder WALDRICH COBURG TYPE 30-10 S 4030

Offer #442

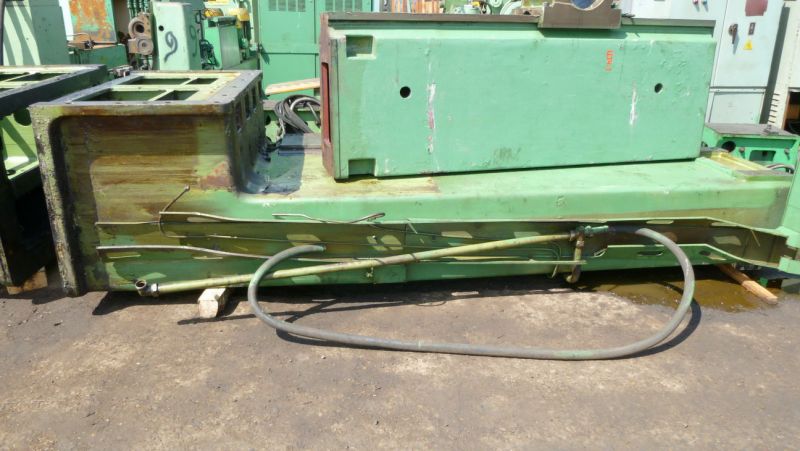

Slideway Grinder WALDRICH COBURG TYPE 30-10 S 4030
Manufacturer: Waldrich Coburg
Made in: Germany

Specification:

Max grinding width: 2220 mm
Grinding length:
 Max: 5690 mm
 Min with the table speed 5 m/min: 135 mm
Grinding height: 1530 mm
Distance between columns: 2220 mm
Table size: 2000x6000 mm
Working mounting surface of the table: 5010 mm
Max work-piece weigth: 6500 kg
Motor power: 30 kW
Max dimensions of grinding circle: dia. 600x150 mm
Spindle speed: 930 rpm
