Thread grinding machine REISHAUER US

Offer #692

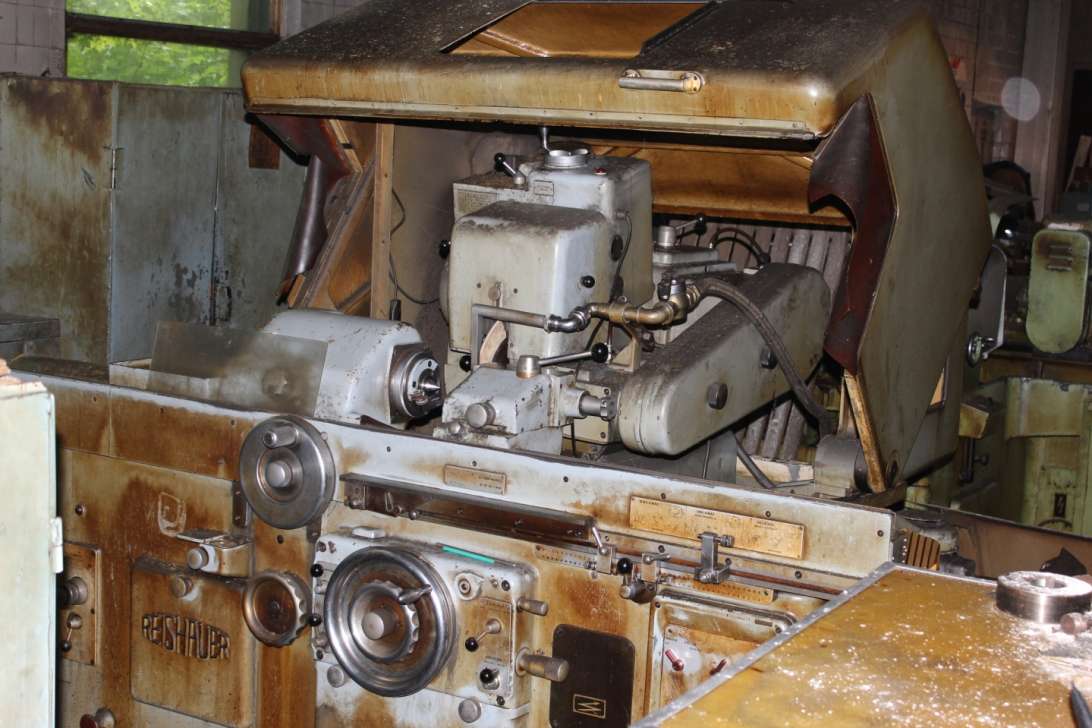

Thread grinding machine REISHAUER US
YOM: 1969
Manufacturer: Reishauer AG
Made in: Switzerland

Specification:

Grinding length: 450 mm
Distance between centers: 870 mm
Diameter of the part:
 -Min: 2-4 mm
 -Max: 250 mm
Max part weight: 50 kg
Max orientation angle: 40 degrees
Grinding wheel:
 -Min: 275 mm
 -Max: 350 mm
Ceramic/organic grinding wheel boring: 160/230 mm
Grinding/rolling wheel speed: 1700-2540/72 rpm
Parts-holder spindle speeds number: 27
Parts-holder spindle speed: 0.4-160 rpm
Parts-holder spindle boring: 45 mm
Dimensions:
 -Height: 1700 mm
 -Width: 3500 mm
 -Length: 1855 mm
Weight: 4850 kg
