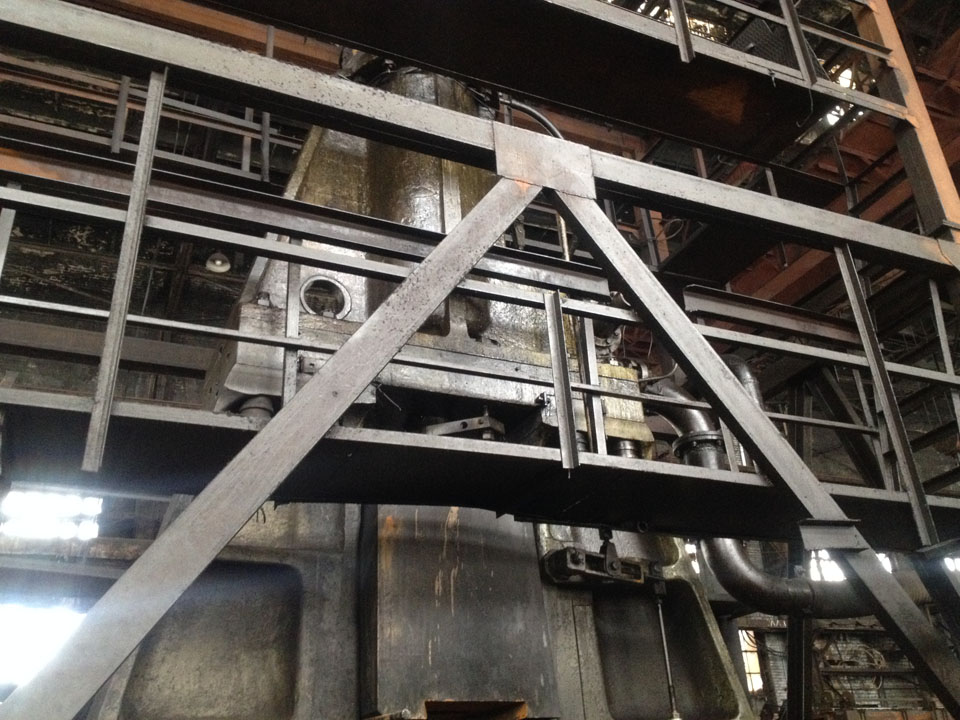

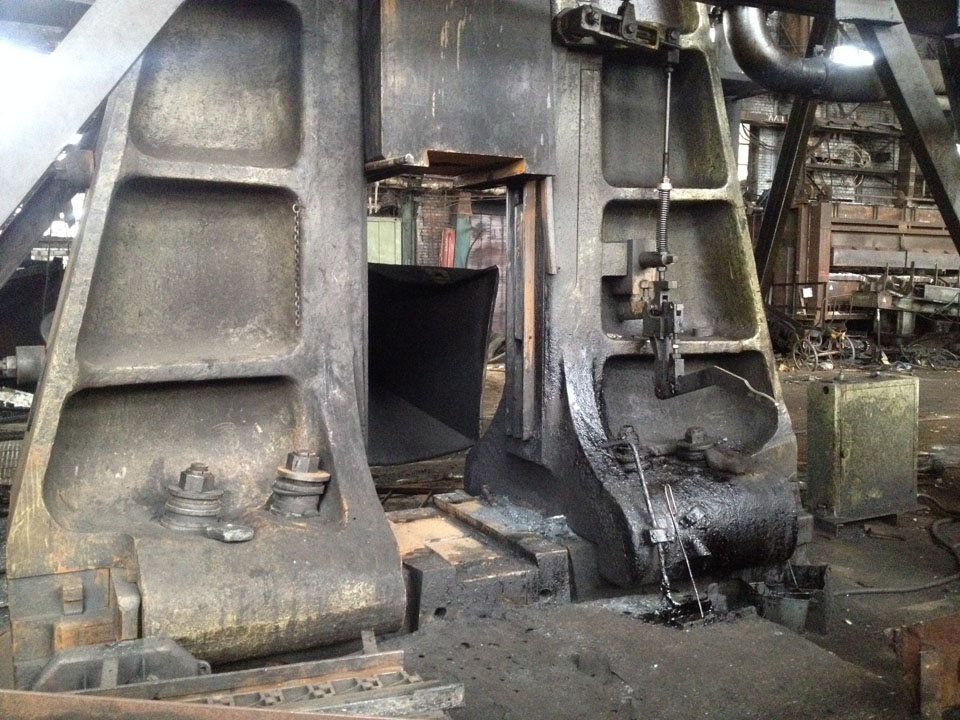

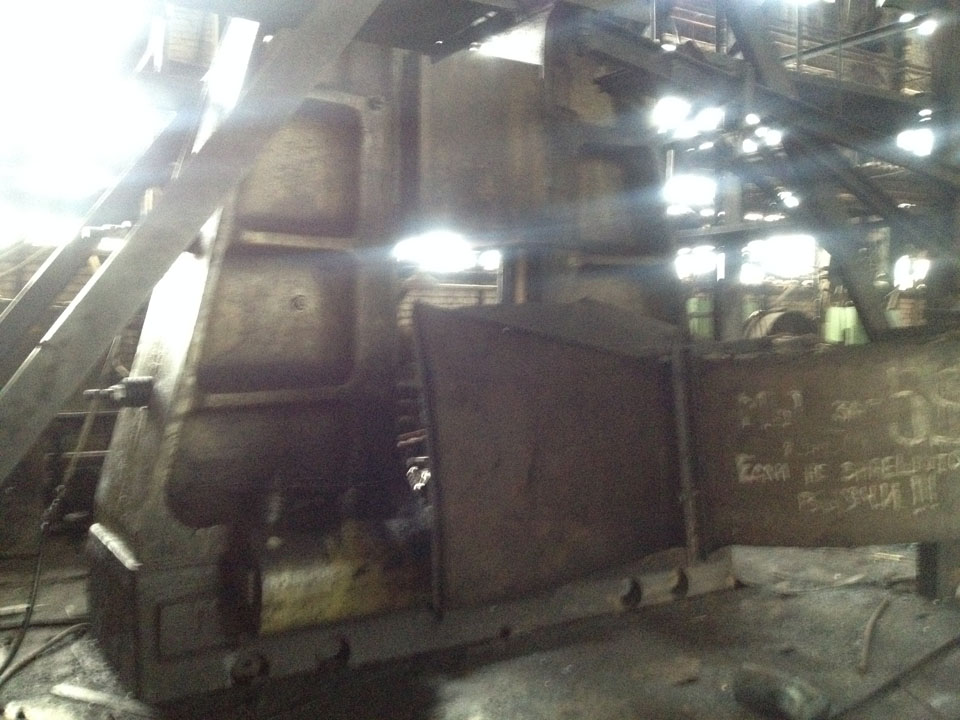

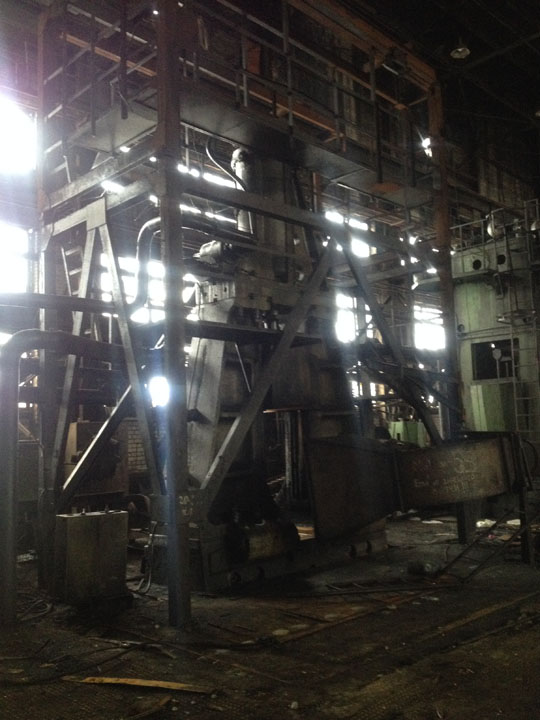

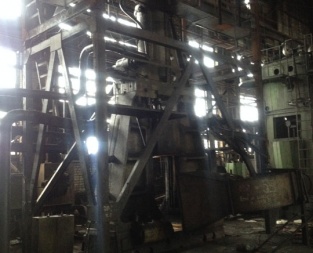

Air steam forging hammer mod. MA2147

Offer #1578

Air steam forging hammer mod. MA2147
YOM: 1980
Made in: Russia

Specification:

Strike energy: 125 kJ
Nominal weight of the falling parts: 5000 kg
Max. working ram stroke: 1300 mm
Distance between guides in daylight: 800 mm
Min. height of dies without shafts: 400 mm
Frot-to-back size:
 -Of ram: 950 mm
 -Of die holder: 1180 mm
Number of strokes per minute: 50
Dimensions:
 -Length: 3700 mm
 -Width: 2000 mm
 -Height: 8750 mm
 -Height above floor: 6490 mm
Weight of hammer: 40942 kg
Weight of anvil block: 99422 kg
Overall weight: 140364 kg
