Offer #900

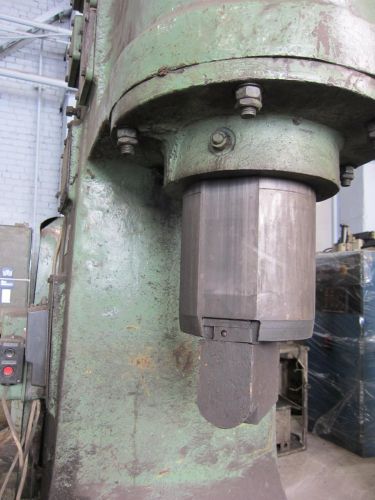

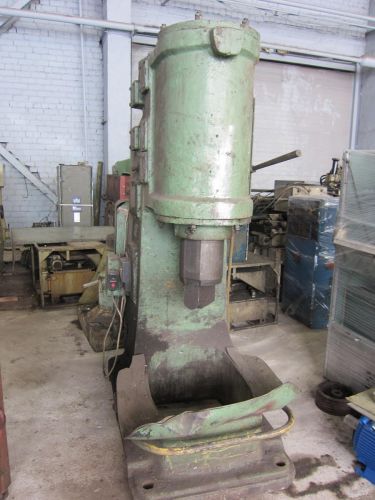

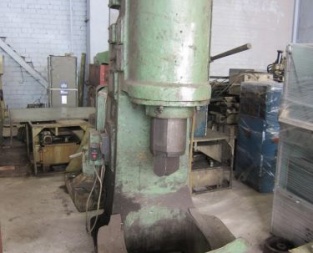

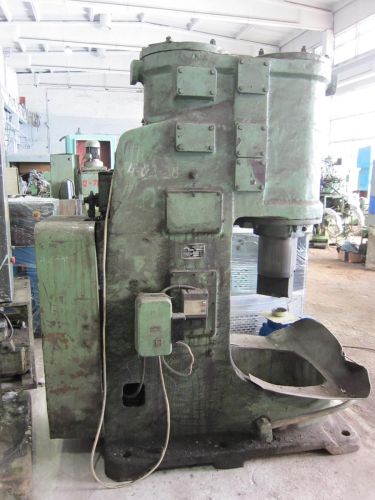

Pneumatic air forging hammer model MA4132
Made in: Russia
Manufacturer: ASTRAXAN Factory

Specification:

Weight of the falling parts: 160 kg
Number of strokes per min: 196
Effective kinetic energy of falling part by stroke: 250 kg/m
Distance from ram axis-to-frame: 350 mm

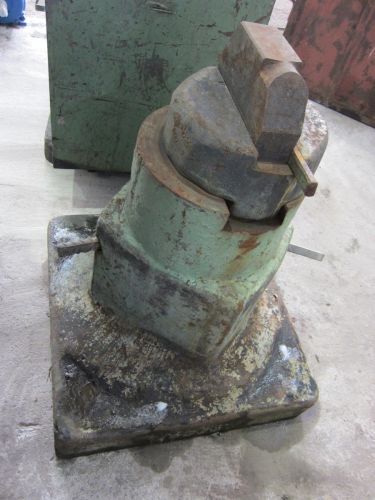

Anvil dimensions:
 -Length: 190 mm
 -Width: 75 mm
 -Anvil height above the floor: 800 mm
Diameter of working cylinder: 315 mm
Diameter of compressor cylinder: 330 mm
Stroke run: 390 mm
Optimal stamping section of work-piece:
 -Square: 70 mm
 -Rounded 80 mm
Overall dimensions mm:
 -Length: 930 mm
 -Width: 1860 mm
 -Height above floor: 2160 mm
Weight of the hammer with an anvil-block: 5290 kg
