Offer #904

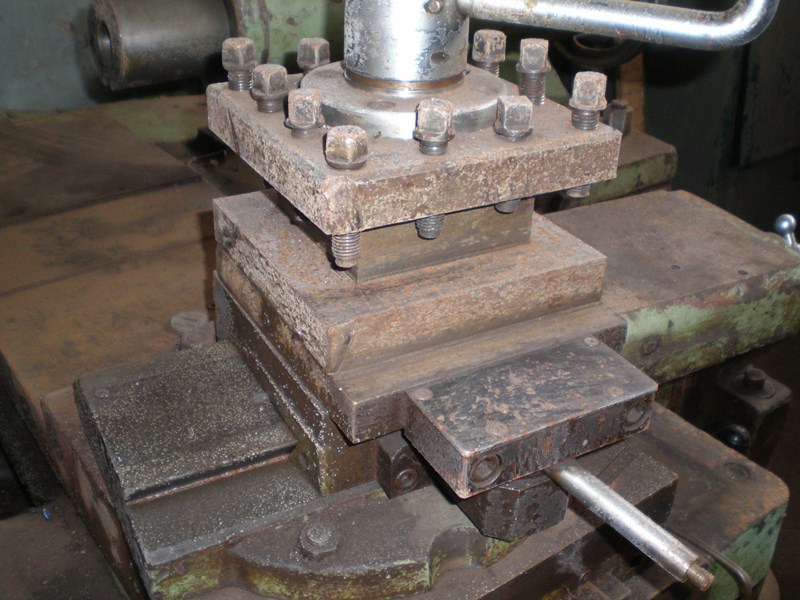

Universal lathe RYAZAN model 1N983
YOM: 1976
Made in: Russia
Manufacturer: Ryazan
Machine is used for the processing of pipe and pipe components, including thread cutting in terms of the single and mass production.
Specification:
Precision category N according to GOST 8-71
Diameter range of processable pipes: 70-290 mm
Max diameter of processable work-piece:
-Over stand: 800 mm
-Over support: 450 mm
Diameter of spindle hole: 300 mm
Max turning length:
-With bevel ruler: 800 mm
-W/O bevel ruler: 420 mm
Amount of spindle speeds: 12
Limits of spindle rotation frequency: 8-355 turn/min
Amount of longitudinal and cross support servings: 32
Limits of:
-Longitudinal servings: 0,064-1,025 mm/turn
-Cross servings: 0,034-0,458 mm/turn
Step limits of cuttable:
-Metric threads: 1-12 mm
-Inch threads (amount of threads for 1): 2-24
Max turn angle of bevel ruler: +- 10 degrees
Overall machine dimensions:
-Length: 3600 mm
-Width: 1860 mm
-Height: 1525 mm
Machine weight with electric equipment: 9050 kg
