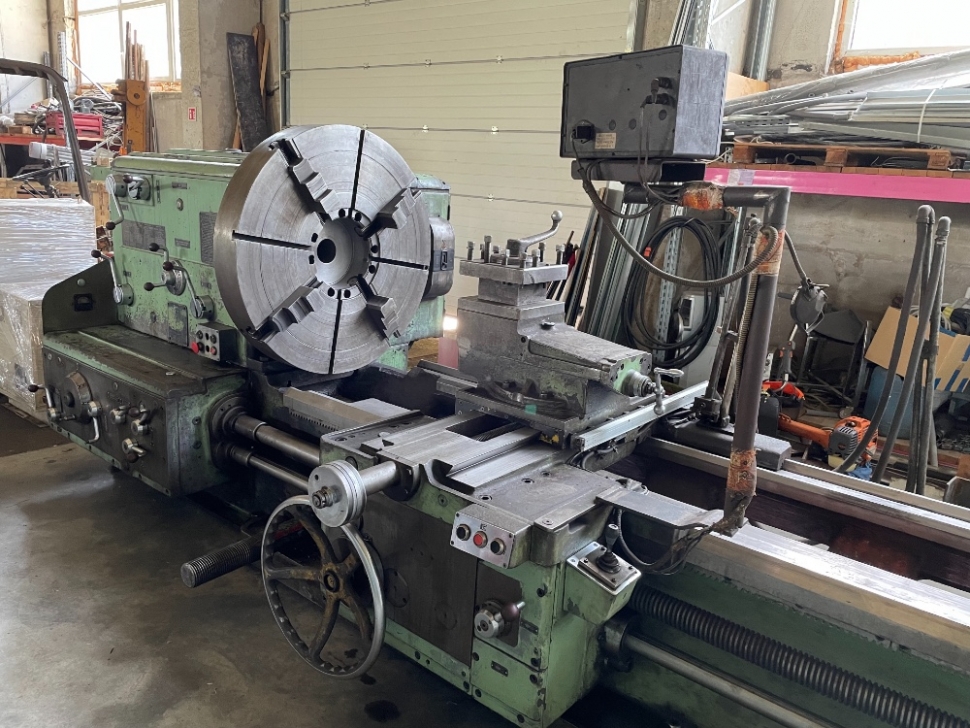

Universal screw-cutting lathe RYAZAN 165

Offer #2202

Universal screw-cutting lathe RYAZAN 165
YOM: 1975
Manufacturer: Ryazan
Made in: Russia

Specification:

Max. work-piece diameter:
 -Above bed: 1000 mm
 -Above support: 600 mm
Max. work piece length: 3000 mm
Max. work piece weight: 5000 kg
Diameter of a cylindrical aperture in a spindle (not less): 85 mm
The end of a spindle in accordance with GOST 12595-72: 1-15M
Cutting tool height: 50 mm
Amount of speeds of a spindle: 24
Spindle speed: 5-500 rpm
Feeds count: 32
Feeds:
 -Line: 0,20-3,05 mm/turn
 -Cross: 0,07-1,04 mm/turn
The greatest force of cutting supposed by the mechanism of submissions:
 -Longitudinal: 1200 kg
 -Transverse: 780 kg
Step of a cut groove:
 -Metric: 1-120 mm
 -Modular module: 0.5-30
 -Inch: 28-1/4 threads/inch
Machine overall dimensions:
 -Length: 5825 mm
 -Width: 2100 mm
 -Height: 1760 mm
Machine weight: 12500 kg
