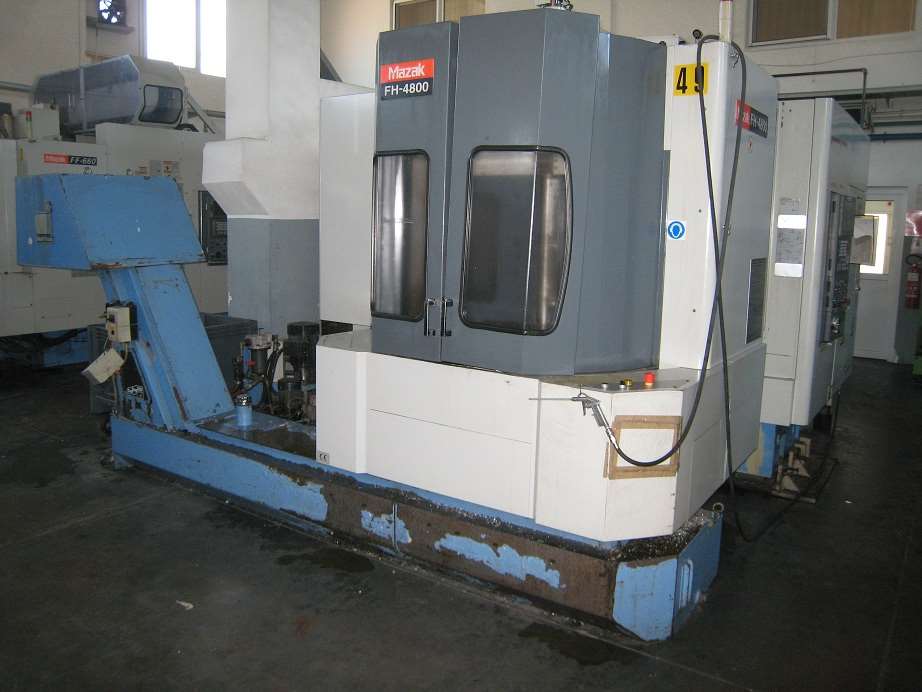

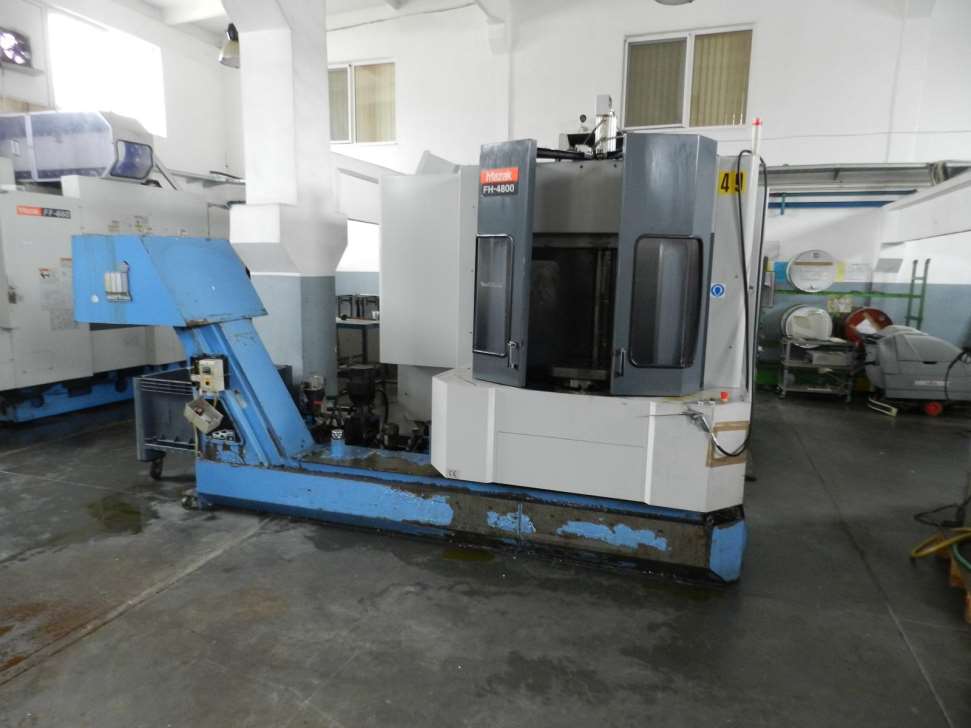

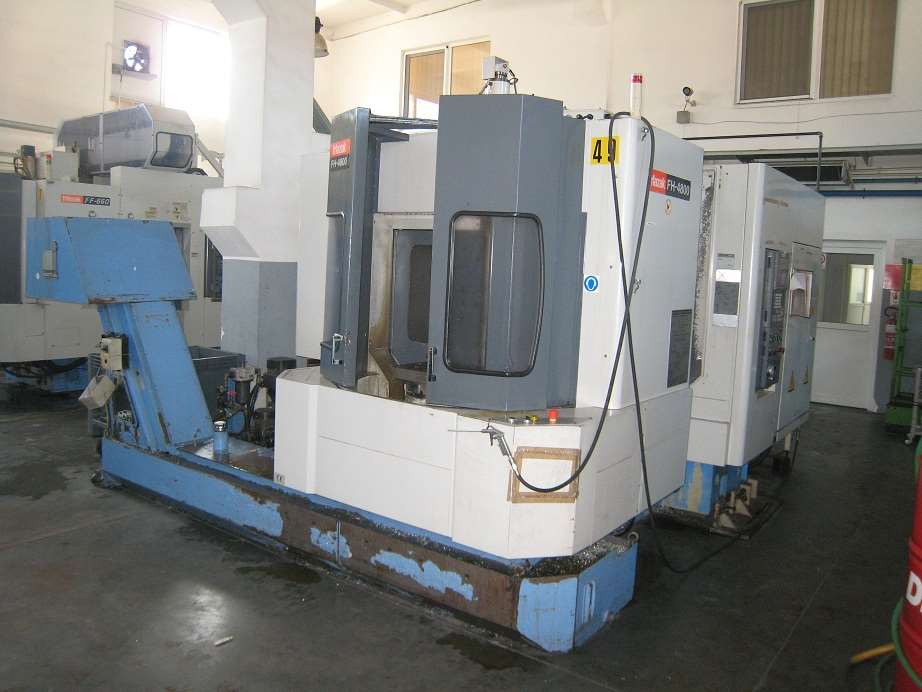

Horizontal CNC machining center MAZAK FH-4800

Offer #942

Horizontal CNC machining center MAZAK FH-4800
YOM: 2000.02
Made in: Japan
Manufacturer: MAZAK

Condition: perfect

Specification:

Distance from spindle center until palette surface: 50-660 mm
Max tool:
 -Diameter: 150 mm
 -Length: 375 mm
 -Weight: 12 kg
Palette:
 -Dimensions: 400 x 400 mm
 -Amount: 2 (1+1)
CNC system: MAYATROL
Amount of control programs: 4
Rapid feeding: 30000 mm/min
Main motor:
 -22 kw (30 min)
 -15 kw (20 min)
 -11 kw (constantly)
Spindle taper: ISO- 40
Spindle rotation speed: 12000 rpm
Max work-piece weight: 400 kg
Tool magazine positions: 64
Stroke:
 -X-axis: 560 mm
 -Y-axis: 610 mm
 -Z-axis: 560 mm
Machine dimensions:
 -Length: 4200 mm
 -Width: 2700 mm
 -Height: 2650 mm
Machine weight: 11500 kg
